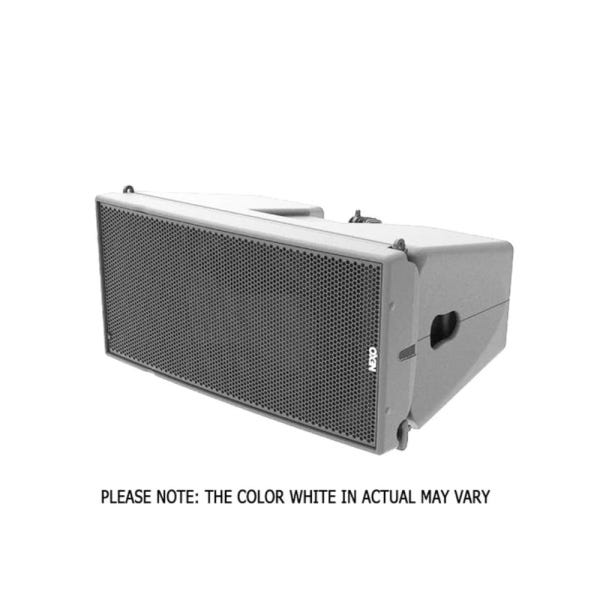

Yamaha GEOM1220-IPW Nexo Geo M, White Line Array Element - Install Version

Unveil Superior Sound with Yamaha Nexo GEO M1220
Meet the Yamaha Nexo GEO M1220, a revolutionary line array element that blends aesthetic finesse with acoustical precision, tailored for diverse installation environments. Whether passive or active, this system leverages a 12” LF driver and a 3” voice coil coupled with a 1.4” throat HF to deliver impeccable sound across any venue size. It's designed to function seamlessly in varied acoustic settings, from concert halls to corporate events, ensuring top-tier audio delivery every time.

Engineered for Any Venue
The GEO M1220 dimensions stand at 370mm x 700mm x 446mm, weighing a robust 34 kg. This compact yet powerful unit uses cutting-edge Neodymium drivers, allowing up to 12 interconnected boxes to project clear and far-reaching sound. Its white finish not only adds elegance but also blends effortlessly into any installation setting, enhancing the visual and auditory ambiance.

Advanced Audio Innovation
Embedded with NEXO's advanced technological suite, the GEO M12’s high frequencies are managed by the patented Hyperbolic Reflective Wavesource (HRW™) technology, enhancing clarity and detail. The low frequencies are refined by the Phase Directivity Device (PDD™), ensuring rich, resonant bass tones. The robust enclosure incorporates a honeycomb structure and urethane co-polymer material, mirroring the durability and performance of NEXO’s flagship STM Series.

Customizable Acoustic Control
Flexibility is at the heart of the GEO M1220's design. It offers adjustable vertical dispersion angles of 10° and 20°, alongside a default horizontal spread of 80°. With the addition of the patented Configurable Directivity Device (CDD™), the spread can quickly expand to 120°, adaptable via a magnetic system. This feature, combined with our renowned NS-1 simulation software, allows for tailored sound that perfectly fits the architectural nuances of any space.

Designed for Installation Efficiency
The installation model of the GEO M1220 features a fixed steel grid, subtly masked by an acoustic cloth that conforms to the overall design aesthetic. The assembly is simplified through a rigging system employing safety nuts and IP54-rated cable glands and four-core cables, ensuring secure, reliable connections that stand the test of time in indoor and outdoor setups.

Seamless System Integration
With a consistent phase response that aligns with other NEXO systems, the GEO M1220 facilitates effortless integration. This attribute is crucial for augmenting existing setups or for new installations requiring side fill, front fill, or subwoofer enhancements, all without the hassle of audio phasing issues or complex setups.
