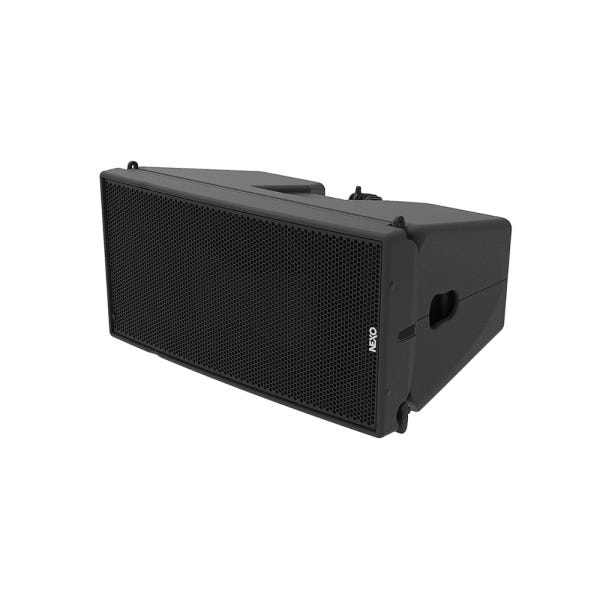

Yamaha GEOM1220-I Nexo Geo M, Line Array Element - Install Version

Discover the Precision of Yamaha Nexo GEO M1220 for Installations
Introducing the Yamaha Nexo GEO M1220, a state-of-the-art line array element designed for installation in various venues. This model combines exceptional design and sonic capabilities, ensuring a versatile audio solution for mid to large-sized settings. It features both passive and active modes, accommodating diverse acoustic demands with a 12” low-frequency driver and a high-frequency setup of a 3” voice coil and a 1.4” throat.

Compact and Robust Design
Despite its compact size of 370mm x 700mm x 446mm, the GEO M1220 packs a heavyweight punch, weighing 34 kg. It’s engineered to perform in any indoor or outdoor environment, utilizing up to 12 linked boxes to deliver powerful sound coverage. The black finish adds a professional look, seamlessly integrating into any venue aesthetics.

Cutting-Edge Audio Technology
At the core of the GEO M12’s superior performance is NEXO's innovative technology. The high frequencies are crisply managed by our patented Hyperbolic Reflective Wavesource (HRW™) technology, while the low frequencies are enhanced by the Phase Directivity Device (PDD™). This ensures sound clarity and precision across all frequencies. The robust enclosure boasts a honeycomb structure and urethane co-polymer material, mirroring the standards set by NEXO’s flagship STM Series.

Adaptable Sound Coverage
This installation version of the GEO M12 offers adjustable sound dispersion to meet the specific needs of any venue. It provides two vertical dispersion options—10° for focused coverage and 20° for broader range. Horizontally, it defaults to 80° but can expand to 120° using the optional Configurable Directivity Device (CDD™), allowing for tailored soundscapes that cater to unique architectural acoustics.

Installation-Specific Features
Designed with the installer in mind, the GEO M1220 features a fixed front steel grid, backed by an acoustic cloth for a discreet appearance. The robust rigging system ensures safety and ease of installation, using safety nuts and IP54 rated connectivity through cable glands and captive four-core cables. This ensures a secure and reliable setup, suitable for permanent installations in demanding environments.

Seamless Integration and Operation
Harmonizing with other NEXO systems, the GEO M1220 maintains consistent phase responses, facilitating easy integration without the risk of sound distortion. This compatibility ensures it can serve as a versatile addition to existing setups, enhancing side fill, front fill, or subwoofer applications without complex adjustments.
