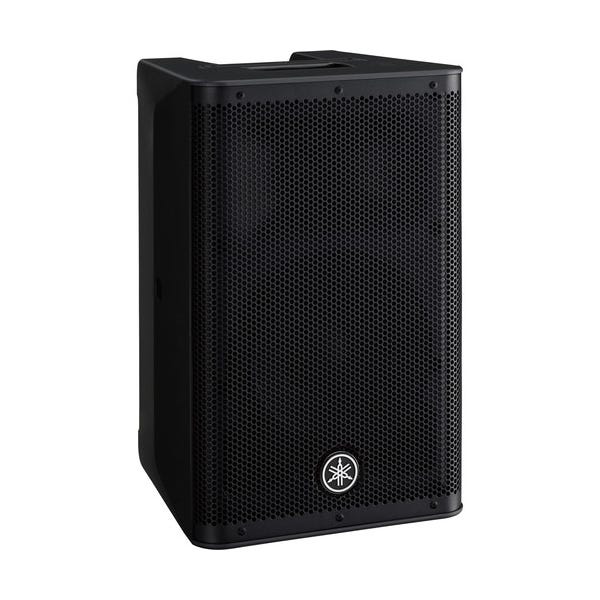

Yamaha DXR8MKII 8" 1100W 2-Way Active Loudspeaker

Compact Powered Loudspeaker for Professional Live Sound

The Yamaha DXR8mkII is an 8-inch, 2-way active loudspeaker designed to deliver high-output, full-range sound in a compact and highly portable enclosure. With an integrated 1100W Class-D amplifier and advanced DSP processing, this speaker is built for live sound reinforcement, mobile DJs, musicians, corporate events, and installed audio systems that demand clarity, power, and reliability from a small-format speaker.

High-Output Drivers with Wide Frequency Coverage

At the core of the DXR8mkII is a high-output 8-inch woofer paired with a 1.75-inch compression driver, providing detailed high frequencies and controlled low-end response. The bass-reflex ABS cabinet improves low-frequency efficiency while reducing air turbulence, allowing the speaker to reproduce clean bass without distortion even at higher volume levels. This design supports a wide frequency range suitable for vocals, instruments, and playback audio.

Advanced DSP Processing for Clear and Controlled Sound

The integrated DSP platform uses Yamaha’s FIR-X linear-phase crossover technology to maintain accurate phase alignment between the low and high-frequency drivers. This results in a smooth, natural transition across the frequency spectrum. Built-in protection circuits continuously monitor the amplifier, power supply, and transducers to ensure consistent performance and long-term reliability during demanding use.

Flexible Performance Modes for FOH and Monitoring

A built-in dynamic contour processor allows the DXR8mkII to adapt to different roles within a sound system. When used as a front-of-house speaker, the contour optimizes overall balance for audience coverage. In monitor mode, low frequencies are controlled to reduce stage rumble and feedback, making the speaker equally effective as a floor monitor or side-fill speaker.

Multiple Input Options and System Expansion

The rear panel includes XLR, 1/4-inch, and RCA inputs, allowing direct connection to mixers, audio interfaces, instruments, and media players. XLR thru and output connections simplify daisy-chaining and system expansion, making the speaker easy to integrate into mono, stereo, or distributed sound systems.

Versatile Mounting and Installation Options

The DXR8mkII supports floor placement, pole mounting, and flown installation. A dual-angle 35mm pole socket allows standard vertical mounting or a 7-degree downward tilt for improved audience coverage. Integrated M8 fly points enable safe suspended installation, and an optional U-bracket is available for wall-mounted applications in permanent venues.
