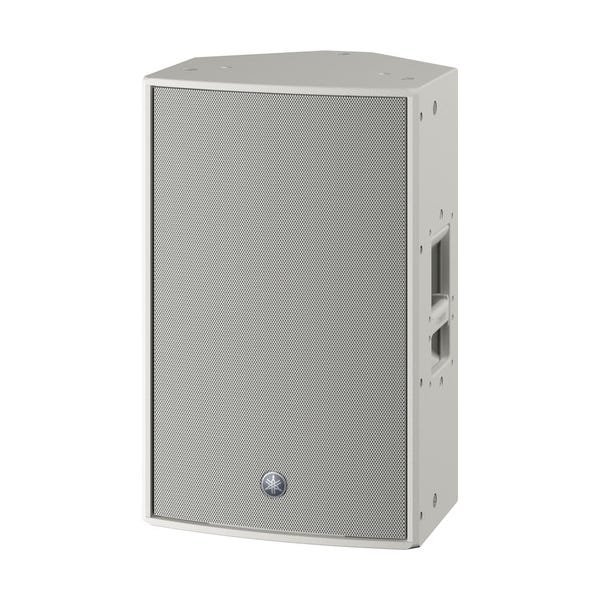

Yamaha CZR12W 800W 2-Way 12" Passive Loudspeaker (White)

Optimize Your Sound with the Yamaha CZR12W Loudspeaker
Step up your audio performance with the Yamaha CZR12W, a formidable 2-way passive loudspeaker designed to handle both main/FOH and floor monitor applications with finesse. Ideal for powering live bands at outdoor festivals or enhancing DJ sets in clubs, this versatile speaker requires 800W to drive its 12" woofer and 2" compression driver. Together, they deliver a comprehensive frequency range of 43 Hz to 20 kHz (-10 dB) and a maximum SPL of 129 dB, ensuring your sound cuts through in any live performance or installed sound environment.

Advanced Acoustic Engineering
The CZR12W features a rotatable horn that can be mounted vertically or horizontally, enabling you to customize the speaker's output to match the specific acoustic dimensions of any venue. This adaptability is supported by the constant directivity (CD) horn, engineered to provide smooth, consistent coverage and minimize the roll-off typical of conventional horn designs, thus enhancing your audience's auditory experience across all listening areas.

Bi-Amplification for Detailed Sound Control
To achieve the highest level of performance, the CZR12W supports bi-amplification, allowing separate amplifier channels to independently power the woofer and compression driver. Yamaha advises pairing the speaker with a DSP speaker processor or a power amplifier with integrated DSP, such as those in Yamaha's PX Series, to fine-tune crossovers, limiting, and equalization. This setup not only optimizes sound quality but also significantly enhances the clarity and impact of your audio output.

Robust Construction and Easy Setup
Built to endure the demands of touring and regular use, the CZR12W boasts a lightweight yet extremely durable plywood cabinet coated with premium graded Polyurea. It features dual-angle pole sockets for quick setup in various configurations and twelve M10 rigging points for secure permanent installations. The speaker's versatile design is complemented by optional accessories like speaker covers and U-bracket options, ensuring it can adapt to any setting or requirement.

Connectivity and Expansion Options
Equipped with two Neutrik SpeakON NL4MP connectors configured in parallel, the CZR12W allows for easy daisy-chaining of additional speakers, expanding your system's capacity effortlessly. Whether setting up for a small event or a large venue, this speaker's connectivity features ensure a seamless integration into any professional audio setup.
