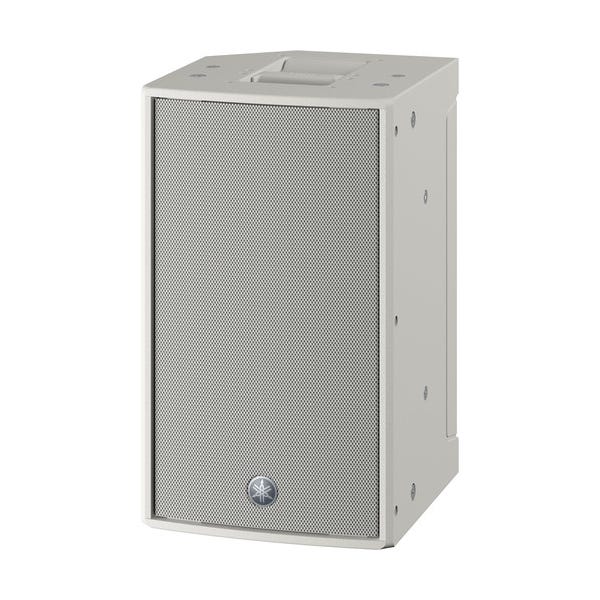

Yamaha CZR10W 700W 2-Way 10" Passive Loudspeaker (White)

Elevate Your Audio Experience with Yamaha CZR10
Introduce premium sound quality to your live events with the Yamaha CZR10, a powerful white 2-way passive loudspeaker designed for both main/FOH applications and as a floor monitor. This versatile speaker is equipped with a 10" woofer and a 2" compression driver, delivering a comprehensive frequency range of 43 Hz to 20 kHz (-10 dB) with a maximum SPL of 127 dB. Whether it's powering live bands at outdoor festivals or amplifying DJ sets in clubs, the CZR10 is engineered to handle diverse live performance and installed sound environments with ease.

Optimized Acoustic Design
The CZR10 features a rotatable horn that can be adjusted for vertical or horizontal mounting, allowing you to tailor the acoustic output to the specific dimensions of any venue. This flexibility is enhanced by the constant directivity (CD) horn, designed to provide smooth, consistent coverage across the coverage area, significantly minimizing the common issue of sound roll-off found in traditional horn designs.

Bi-Amplification Capability for Superior Sound
For those seeking to optimize audio performance, the CZR10 offers a bi-amplification mode, allowing separate power channels to individually drive the woofer and compression driver. This setup, used in conjunction with a DSP speaker processor or a power amplifier with integrated DSP—like Yamaha's renowned PX Series amplifiers—enables precise control over crossovers, limiting, and equalization, ensuring the speaker performs at its best in all conditions.

Robust Build and Versatile Connectivity
Durability meets sophisticated design in the CZR10’s construction. The speaker boasts a lightweight yet sturdy plywood cabinet finished with a premium graded Polyurea coating, making it both durable and easy to transport. The rear panel houses two Neutrik speakON NL4MP connectors configured in parallel, facilitating the daisy-chaining of additional speakers for larger setups.

Installation and Configuration Flexibility
Equipped with comprehensive rigging options including eight M10 and two M8 points, and dual-angle pole sockets, the CZR10 is as adaptable as it is powerful. Whether setting up for a temporary event or a permanent installation, these features provide significant flexibility in speaker placement and orientation, ensuring optimal sound distribution in any setting.
