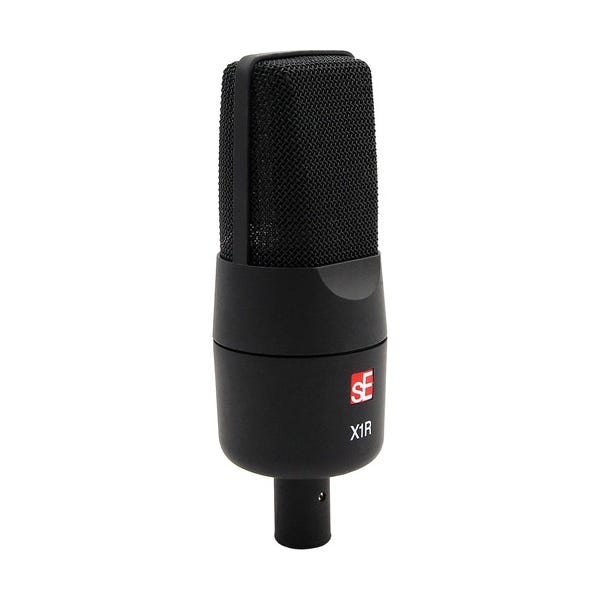

sE Electronics X1 R Passive Ribbon Microphone

sE Electronics X1 R: An Accessible, Road-Ready Passive Ribbon

The sE Electronics X1 R is a passive ribbon microphone in the popular X1 series, built around a hand-tensioned 2.5-micron aluminum ribbon for classic ribbon smoothness in a rugged, accessible package. It requires no phantom power and delivers the warm, natural character ribbons are known for while standing up to real-world studio and stage use far better than delicate vintage ribbons. With a figure-8 pattern and 135 dB of maximum SPL, it is a natural first ribbon for guitar cabinets, brass, and broadcast work. This is the microphone that opens the door to ribbon recording and keeps earning its place once it is there.

Passive Ribbon Design, No Phantom Power Needed

The X1 R is a passive ribbon microphone, generating its signal directly from the ribbon element with no internal amplifier and no need for 48V phantom power. A ribbon transducer is a thin corrugated strip of aluminum suspended in a magnetic field, and as sound moves the ribbon it induces a small voltage, a simple design famous for its smooth, natural sound. Because it is passive, the X1 R sounds its best with a preamp that has plenty of clean gain, and though it is phantom-protected against accidental power, careful routing is still wise. This uncomplicated design is exactly why passive ribbons sound so organic on the right source.

Hand-Tensioned 2.5-Micron Aluminum Ribbon

At the core of the X1 R is a hand-tensioned aluminum ribbon 2.5 microns thick. The ribbon's extreme thinness lets it move naturally with the air, giving it the fast, smooth response and absence of harsh resonant peaks that define ribbon character, and its two-sided pickup forms a natural figure-8 pattern. Hand-tensioning allows sE to set the ribbon for consistent, musical performance. On a bright guitar amplifier or a piercing brass instrument, this ribbon softens the edges and delivers a warm, rounded tone that flatters the source.

Rugged, Road-Ready Build

Unlike fragile vintage ribbons that can be damaged by rough handling or a blast of air, the X1 R is engineered as a durable, road-friendly modern ribbon. Classic ribbons earned a reputation for delicacy because their ribbons could be stretched or torn by careless use, but sE's construction and the ribbon's tensioning make the X1 R far more forgiving in everyday work. This ruggedness means you can use it on stage, in a busy project studio, or on location without treating it as a museum piece. For a first ribbon, that durability removes much of the anxiety that keeps people from trying the format.

Figure-8 Polar Pattern

The X1 R has a native figure-8 pattern, picking up equally from the front and rear while rejecting the sides. Those side nulls let you aim the microphone to reject a nearby instrument or a reflective wall, and they let the X1 R take part in classic stereo techniques such as Blumlein and mid-side when paired with another mic. The rear lobe can also be used intentionally to capture room reflections. On a guitar cabinet, this gives you a simple way to control how much room and spill reach the recording.

135 dB Max SPL for Loud Sources

The X1 R handles up to 135 dB of maximum SPL, giving it the headroom to sit right in front of loud sources. Maximum SPL is the highest level a microphone accepts before distortion becomes significant, and the X1 R's 135 dB rating means it stays clean on a cranked guitar cabinet or a loud brass section where a ribbon's natural smoothing is most welcome. This is precisely why engineers reach for ribbons on aggressive electric guitar, where a condenser can sound harsh. You can place the X1 R close to a roaring amp and trust it to deliver a full, controlled tone.

Where the X1 R Belongs

The X1 R is well suited to guitar cabinets, drum overheads, brass, woodwind, strings, and commercial broadcast or voice-over work, serving as an accessible entry into ribbon recording. If this is your first ribbon, its durability and smooth character let you learn the format without fear of damaging a delicate instrument. If you already own bright condensers, the X1 R adds a complementary voice that tames harsh sources and adds warmth to your locker. For any engineer who wants genuine ribbon tone in a dependable, everyday microphone, the X1 R delivers it and keeps delivering session after session.
