Broadcast Tools GPI-16 Plus G2 Serial/USB GPI/Trigger Interface

Optimize Your Broadcast Setup with the Broadcast Tools GPI-16 + G2 Interface
The Broadcast Tools GPI-16 + G2 is a versatile interface designed to convert 16 general purpose logic/trigger inputs into a format compatible with USB and RS-232 serial COM ports. Ideal for broadcast automation, this device supports integration with most Broadcast Tools audio switchers using the “PIP” GPI format, as well as legacy systems through the AT-1616 format. This makes it an essential tool for professionals looking to streamline operations and enhance system responsiveness in their broadcast environments.

Flexible Configuration for Enhanced Compatibility
Understanding the need for adaptable solutions in dynamic broadcast environments, the GPI-16 + G2 offers four user-selectable unit IDs and four baud rates. This flexibility allows users to customize settings to match specific requirements and equipment, ensuring seamless integration and optimal performance across various platforms and setups.

Connectivity and Indication Features for Reliable Operation

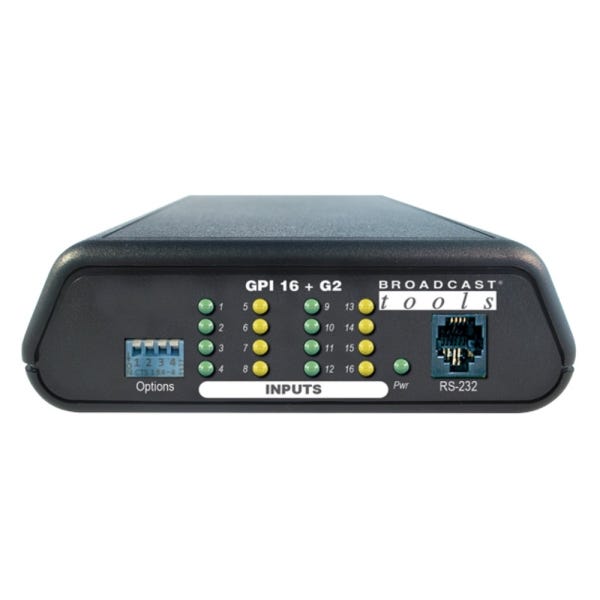

This interface is equipped with both USB serial and RS-232 serial COM port connections, providing versatility in how it can be connected to PCs and other devices. It includes LED indicators for all 16 GPI inputs and power status, offering at-a-glance monitoring of the interface’s operation. This immediate feedback is crucial for troubleshooting and ensuring consistent performance during live broadcasts.

Easy Installation and Maintenance
The GPI-16 + G2 features GPI connections on a removable euro-block screw terminal connector, simplifying the wiring process and making service straightforward. Mating plugs are provided to ensure secure and reliable connections. This design consideration facilitates quick setup and routine maintenance, reducing downtime and supporting continuous operation.

Durable and Secure Design for Professional Use
Designed with the demanding environments of broadcast studios in mind, the GPI-16 + G2 is fully RFI proofed and includes a surge-protected power supply, ensuring it operates reliably under various electrical conditions. The unit is also designed to be mounted on the optional RA-1 rack shelf or can be placed on a desktop or mounted on a wall, providing flexibility in how it is integrated into existing spaces.
