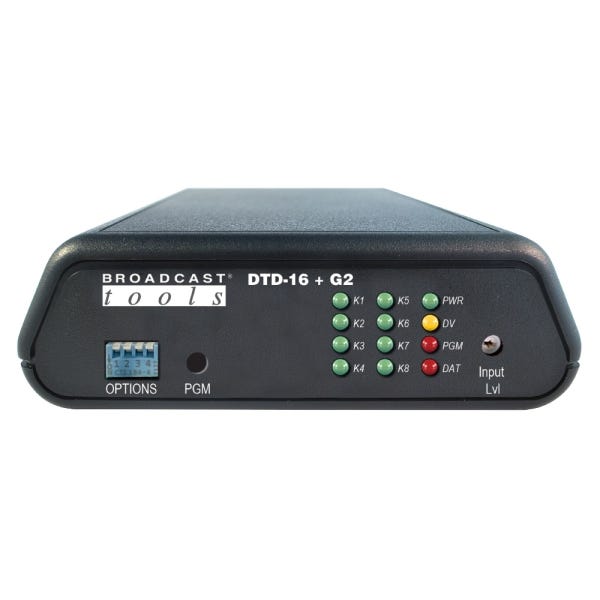

Home Remote Control Equipment Broadcast Tools DTD-16 Plus G2 DTMF Decoder w/ Relay Outputs and USB/Serial
$369.00

Comprehensive DTMF Tone/Sequence Decoder, Decodes All 16 DTMF Tones or User-Programmable to Decode Single Tones, 8 SPST Relay Outputs and 8 Open Collector Outputs Triggered by Tones, Front Panel Tone Audio Input Level Control, Ideal Solution for Telecommunications, Broadcasting, and Security Systems

Availability: In Stock
SKU
DTD-16 Plus G2
Add to Wish List Add to Compare

Features

  • Decodes All 16 DTMF Tones or User-Programmed Tone Sequences
  • 8 SPST Relay Outputs and 8 Open Collector Outputs Triggered by Tones
  • Front Panel Tone Audio Input Level Control (-20 to +24dbu)
  • Adjustable Tone Detection Time
  • Front Panel LED Indicators for Relay Status, Power, Tone Activity, and Programming
  • Programmable via USB-Serial or RS-232 Serial Connection
  • Mode Configuration via Front Panel Dip-Switches
  • Euro-Block Screw Terminal Connectors for Easy Wiring
  • Fully RFI Proofed Design
  • Surge Protected Internal Power Supply with 9 VDC Adapter
  • RA-1 Rack Shelf Compatibility for Mounting Options

Advanced Tone Decoding with DTD-16 + G2
Introducing the DTD-16 + G2, a comprehensive DTMF tone/sequence decoder designed for versatile and precise audio signal management. This device is user-programmable to decode single tones or sequences up to six tones in length, making it an ideal solution for telecommunications, broadcasting, and security systems.

Flexible Output Assignment and Control
The DTD-16 + G2 offers flexibility in output assignment, allowing decoded tones to trigger any one of eight SPST normally open relays, eight open collectors, and the USB/RS-232 serial ports. This versatility ensures the device can be integrated into a wide range of audio systems and setups.

User-Friendly Programming and Interface
Programming the DTD-16 + G2 is straightforward, using a non-dedicated PC’s USB or RS-232 serial port with a serial terminal program like HyperTerminal, Tera Term, or PuTTY. This ease of programming makes it accessible for professionals of all skill levels.

Customizable Output Responses
The device's relay and open collector outputs can be programmed for various responses, including closing for the duration of the tone, pulsing after detection, waiting a programmed time, or latching/unlatching, providing tailored solutions for different audio scenarios.

More Information
MPN DTD-16 Plus G2
Color Black
Brand Broadcast Tools
Product Condition New
Availability In Stock
