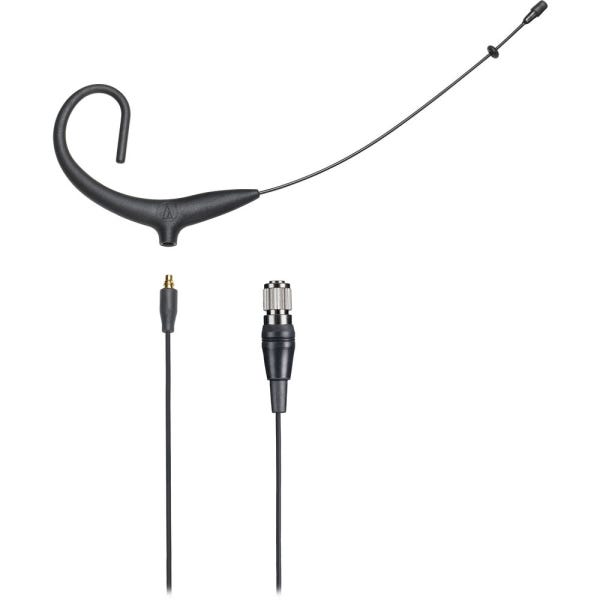

Omnidirectional low-profile earset mic with 20 Hz–20 kHz response, detachable cH cable, dual-ear adapter, windscreens, and carry case
Audio-Technica brand products purchased in the U.S.A. from Sole Source AV Supply are warranted for five years from date of purchase by A.T.U.S. to be free of defects in materials and workmanship.
Features:
Subminiature omnidirectional condenser earset microphone
20 Hz to 20 kHz frequency response
2.6 mm low-profile capsule for minimal visibility
Ergonomic under-ear loop for secure fit
Convertible to dual-ear configuration with included adapter
Detachable cable with cH connector
Handles high sound pressure levels
Includes foam windscreens and moisture guards
Hypoallergenic construction
Protective carrying case included
| MPN | BP892XCH-TH |
|---|---|
| Element | Condenser |
| Pattern | Omnidirectional |
| UPC / EAN | 042005198993 |
| Brand | Audio-Technica |
| Product Condition | New |
| Availability | In Stock |
| Element | Fixed-charge back plate, permanently polarized condenser |
|---|---|
| Polar Pattern | Omnidirectional |
| Frequency Response | 20-20,000 Hz |
| Low Frequency Roll Off | 80 Hz, 18 dB/octave (wired only) |
| Open Circuit Sensitivity | -43 dB (7.2 mV) re 1V at 1 Pa |
| Output Impedance | 250 ohms (wired only) |
| Maximum Input Sound Level | 136 dB SPL, 1 kHz at 3% T.H.D. |
| Dynamic Range | 104 dB, 1 kHz at Max SPL (wired only) |
| Signal-to-Noise Ratio | 63 dB, 1 kHz at 1 Pa |
| Phantom Power Requirements | 11-52V DC, 2 mA typical (wired only) |
| Switches | Flat, roll-off (wired only) |
| Current Consumption | 0.2 mA typical at 5V (wireless only) |
| Voltage Range | 2.5-10V (wireless only) |
| Weight (Microphone) | Microphone, boom & earpiece: 2.6 g (0.09 oz) |
| Weight (Power Module) | 85 g (3.0 oz) (wired only) |
| Cable | Detachable 1.4 m (55") long, 1.6 mm (0.06") diameter, 2- or 3-conductor shielded cable (termination dependent) |
| Dimensions | Microphone: 9.5 mm (0.37") long, 2.6 mm (0.10") diameter Boom: 98.5 mm (3.88") long, 1.07 mm (0.04") diameter |
| Dimensions (Power Module) | 100.0 mm (3.94") long, 18.9 mm (0.74") diameter (wired only) |
| Output Connector (Power Module) | Integral 3-pin XLRM-type (wired only) |
| Accessories Included | BP892x: AT8545 power module (wired only); AT8464x dual-ear adapter kit; AT8440 cable clip; AT8157 windscreen; AT8171 windscreen; two AT8156 element covers; moisture guard; belt clip (wired only); carrying case BP892x-TH: AT8545 power module (wired only); |
| Audio-Technica Case Style | M31 |
