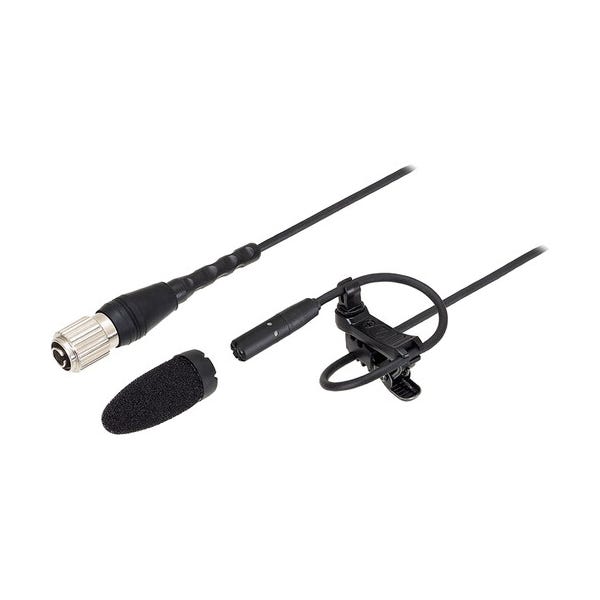

Subminiature cardioid lav mic, locking 4-pin cH connector, durable 55-inch cable, focused speech pickup, low-profile on-camera design
Audio-Technica brand products purchased in the U.S.A. from Sole Source AV Supply are warranted for five years from date of purchase by A.T.U.S. to be free of defects in materials and workmanship.
Features:
Subminiature cardioid condenser lavalier microphone for wireless systems
Locking 4-pin cH-style connector for Audio-Technica bodypack transmitters
Directional pickup pattern for clear speech and reduced ambient noise
Compact low-visibility capsule for broadcast and stage use
Permanently attached 55-inch cable with abrasion-resistant construction
Metal capsule housing for protection against electromagnetic interference
Includes locking windscreens and adjustable clothing clip
| MPN | BP898CH |
|---|---|
| Color | Black |
| Element | Condenser |
| Pattern | Cardioid |
| UPC / EAN | 42005209279 |
| Brand | Audio-Technica |
| Product Condition | New |
| Availability | Out of Stock |
| Element | Fixed‐charge back plate, permanently polarized condenser |
|---|---|
| Polar Pattern | Cardioid |
| Frequency Response | 270‐17,000 Hz (50 cm (1.64')), 60‐17,000 Hz (10 cm (0.33')) |
| Low Frequency Roll Off | 80 Hz, 18 dB/octave (wired only) |
| Open Circuit Sensitivity | ‐42 dB (7.9 mV) (0 dB=1 V/Pa, 1 kHz) |
| Impedance | 250 ohms (wired only) |
| Maximum Input Sound Level | 140 dB SPL (1 kHz at 1% THD) |
| Noise | 28 dB SPL (A‐weighted) |
| Dynamic Range | 112 dB (1 kHz at Max SPL) |
| Signal-to-Noise Ratio | 66 dB (1 kHz at 1 Pa, A‐weighted) |
| Phantom Power Requirements | 11V‐52V DC, 2 mA (wired only) |
| Switches | Low cut: on/off (wired only) |
| Weight | 1.6 g (0.06 oz) (Microphone body) |
| Cable | 1.4 m (4.6') |
| Dimensions | 22.3 mm (0.88") long, 5.3 mm (0.21") diameter (Microphone body) |
| Output Connector | Screw-down 4-pin cH-style connector (wired only) |
| Accessories Included | AT8461a clothing clip base, AT8151a windscreens, case |
