Key Digital KD-AMP220 2 Ch Compact Digital Amplifier

$371.00

2 Channel Class D amplifier with 20 watts per channel @ 4 ohms and 40 watts per channel @ 8 ohms. Great for zone amplification, paging, or back ground music.

Availability: In Stock
SKU
KD-AMP220

Features:

  • Class D 2 Channel Amplification: 20W PER CHANNEL @ 4ohm, 40W @ 8ohm BRIDGED
  • Mixing: Output is a mix of microphone and the selected audio input
  • Signal Processing of variable volume level set for each input. Variable volume, bass, and treble for output
  • Inputs: Microphone (3-pin balanced, condenser/dynamic), 6-pin balanced stereo, 3.5mm stereo
  • Phantom Power: 48V phantom power for integration with condenser microphones
  • Outputs: Pre-amp line level (6-pin balanced), speaker level
  • Speaker Level Output: Bridge, stereo, or mono modes selectable
  • Noise gate for consistent audio levels, prevention of ambient noise
  • Mixes microphone input with selected audio source and can provide phantom power to microphones
  • S-232 controllable volume, muting, mic mix level and more
  • Pre-amp ideal for integrating into 70V audio systems with output reflecting volume, mixing and muting settings applied
  • 20 watts per channel at 4ohm, 40 watts at 8ohm bridged

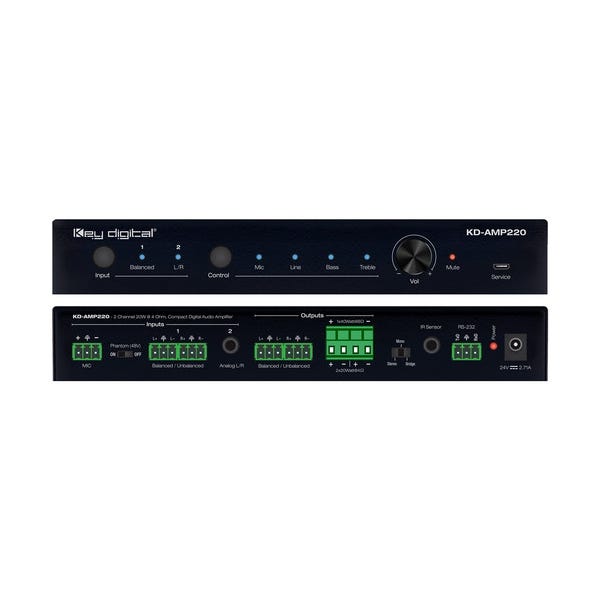

The KD-AMP220 is a 2x20 watt Class-D amplifier with 8 Ω speaker output ideal for installation in presentation spaces. Input connections accommodate microphone, line level balanced/unbalanced, and line level 3.5mm stereo analog audio inputs. The output is a mix of audio from the microphone input and the selected audio input. Microphone and output volume levels may be variably controlled via IR, RS-232, or the front panel, and speaker level output may be set to bridge, stereo, or mono mode.

More Information
MPN KD-AMP220
UPC / EAN 815996020358
Brand Key Digital
Product Condition New
Availability In Stock
