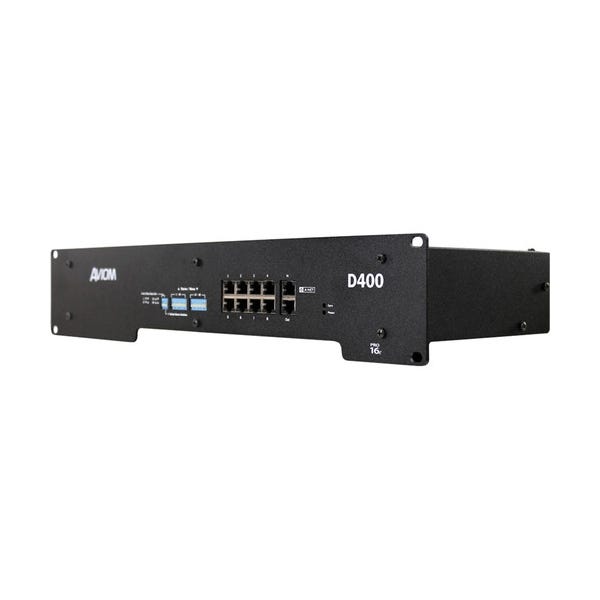

Aviom D400 Distributor for Monitor Mixers and A-Net Audio Networks

was $1,299.00 Special Price $999.00
Distributor for Monitor Mixers and A-Net Audio Networks
Availability: In Stock
SKU
D400

Features:
  - Unpowered A-Net output for connecting additional A-Net distributors or other compatible devices
  - Provides power and up to 32 channels of digital audio to eight Aviom personal mixers
  - Rugged metal construction for durability
  - Easy to install and configure

The D400 and D400-Dante A-Net Distributors provide the link between the personal mixing system's inputs and the Personal Mixers, providing power and a copy of the digital audio stream to your Aviom Personal Mixers, utilizing standard Cat-5e cables.

There are two versions of the D400 product. The standard D400 has an Aviom A-Net input, perfect for using with Aviom's analog input modules or digital console cards from Aviom or our third party partners. The D400-Dante has a Dante input instead, and allows up to 32 channels (at 44.1/48kHz) to be routed from a Dante-enabled console or digital audio network to the Personal Mixers.

The D400 and D400-Dante can be used with A-16II, A320, and A360 Personal Mixers in any combination.

Connecting to Analog or Digital Consoles
For personal mixing systems that use one or more analog input modules (AN-16/i v.2, AN-16/i-M, or legacy AN-16/i) or an A-Net console card (such as the Y1 A-Net Card for Yamaha digital consoles), use the standard D400 with the Aviom A-Net input.

With one Pro16 A-Net In and eight powered A-Net Outs, you can provide power and audio for up to eight Aviom Personal Mixers. And the D400 includes an unpowered A-Net Out as well, perfect for connecting additional A-Net Distributors for systems with more than eight Personal Mixers. Learn more about expanding...

Grow your system
If you need more than eight Personal Mixers, both the D400 and the D400-Dante include an A-Net Out port—perfect for sending the incoming audio stream (regardless of its original source) to additional A-Net Distributors. There is no practical limit to the number of A-Net Distributors and Personal Mixers that you can use in a system. Learn more about expanding your system.

Need Even More Power & Flexibility?
If you're looking for more advanced features like Network Mix Back for use with wireless in-ear systems, iOS support for the A360 Display app, higher smaple rates up to 192kHz, or you need a high channel count interface to Dante, check out the D800 and D800-Dante A-Net Distributors.
Need help choosing?   Compare A-Net Distributors

Stereo Links
Stereo Links are a powerful feature on the A320 and A360 Personal Mixers, allowing a pair of adjacent channels to be assigned to a single mix channel button.

The D400 and D400-Dante give the user the option of assigning stereo links using a set of DIP switches on the front panel of the A-Net Distributor instead of at the input device.

A-Net Offset
The A-Net Offset DIP switches on the D400 can be used to select which bank of channels from the incoming A-Net stream will be assigned to the Personal Mixers connected to the distributor. In larger systems, especially those using multiple A-Net Distributors, this allows extra channel assignment flexibility when connecting input sources to the network.

More Information
MPN D400
Color Black
Input A-Net
Size 2 RU
Form Rackmount
Output A-Net
Channels 32
UPC / EAN 850007957056
Brand AVIOM
Product Condition New
Availability In Stock

D400 and D400-Dante Common Specifications

A-Net Out to Personal MixersEight RJ45 connectors, powered;
Compatible with A640, A360, A320, and A-16II Personal Mixers
A-Net OutPro16e A-Net;
RJ45 connector, unpowered
Supports system expansion and the A-16II, A320, and A360 Personal Mixers
LEDsPower On (red); Network Sync (green)
Stereo LinkTwo 8-position DIP switch blocks (1-16, 17-32)
Output Voltage for Personal Mixers24VDC, 0.5 amp;
Transmitted over the Cat-5e cable

A-Net CablesFront Panel Connections: Shielded Cat-5e (or better) cable must be used to stay below the CISPR 22 Class B, ICES-003, and FCC 47 CFR Part 15 Class B emissions limits.
Unshielded Cat-5e cable may be used on all other network connections
Power SupplyInternal, IEC connector
Input Voltage100-120 VAC or 200-240 VAC (with selector switch); 50-60Hz @220 W max
AC Fuse Types115V range: T2.5AL/250V, slow-acting
230V range: T1.25AL/250V; slow-acting
Dimensions19" (482.6 mm) wide x 7.25" (182 mm) deep; 2U, 3.5" (88.9 mm) high
Weight12.0 lbs (5.44 kg)

D400 A-Net Distributor Specifications

A-Net InputPro16e Aviom A-Net;
RJ45 connector
A-Net Offset Base Slot3-position DIP switch selects the starting channel that Personal Mixers will receive from the network (1, 17, 33, or 49)
