- Mini-YGDAI (MY) format, supported by most Yamaha digital consoles
- One 16-channel Pro16 A-Net output
- Supports sample rates from 44.1kHz to 48kHz, +/-10%
- Assign audio outputs directly from the Yamaha interface
- Channel Link DIP switches for stereo operation

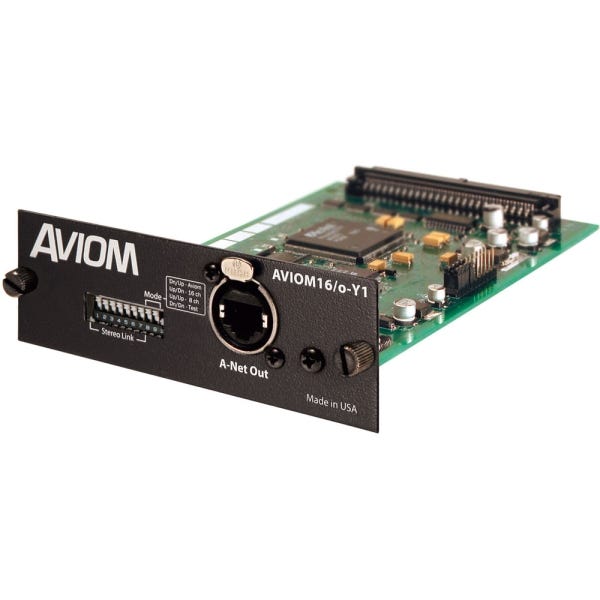

The Aviom16/o-Y1 A-Net Card provides a direct digital interface between Yamaha® digital mixer products and Aviom's Pro16® Series, including the A360, A320, and legacy A-16II Personal Mixers*, A-Net distributors, and output modules.
The Y1 card eliminates the need for an analog input module when creating a monitor mixing or audio distribution system. Assign any combination of channels, direct outputs, aux sends, groups, or sub-mixes from the Yamaha console user interface to the Y1 card as needed. Each Y1 card installed in a console’s MY expansion slot supports up to 16 channels.
The Aviom16/o-Y1 card provides a direct digital interface between Yamaha digital products that use the MY-format expansion slots and Aviom's Personal Mixers. The Y1 card becomes the head end to the monitoring system, simplifying system setup. Just connect a Cat-5e cable from the card to an A-Net Distributor and some Personal Mixer and you've created a monitor system that can be expanded as needed with additional personal mixers, output modules, and A-Net distributors.
In systems using the A360 or A320 Personal Mixer, two or more console cards can be combined to create a network up up to 64 sources. Just add the SB4 System Bridge to combine the console cards' A-Net outputs and connect the SB4 output to a D800 or D800-Dante A-Net Distributor. The D800 will merge the data into a single A-Net stream.
Yamaha Product Compatibility
The Y1 card fits into any available MY expansion slot and is compatible with all Yamaha consoles and mix engines that support the Mini-YGDAI (MY) format.
Configuration of the input sources for an Aviom monitoring system can be done digitally from the Yamaha console's user interface. This gives the console operator the option of routing any combination of channels, direct outputs, aux sends, groups, or sub-mixes from the console to the Y1 card as needed. The console's powerful scene memory can be used to send different groups of channels into the monitors as needed during a performance.
|UPC / EAN
|A-Net Pro16 Output
|16 channels of A-Net digital data;
* 8 channels on PM1D
|Yamaha mini-YGDAI (MY) Expansion Card
|Limited only by the number of available MY expansion slots in the digital mixer
|44.1kHz to 48kHz, +/-10%
|A-Net Out: 1; EtherCon® RJ45 connector
|Switch 1-8: Stereo Link on/off
Switch 9-10: A-Net mode
A-Net Modes: 8-channel, 16-channel, Aviom, Test
Default is switch 9 up, 10 down
|A-Net allows 16 channels of audio to be transmitted over one Cat-5e cable
use unshielded Cat-5e UTP (or better) cable;
max. length 500 feet (150m) between devices
|<0.880 msec (measured from analog input to
uses Yamaha host device as source of power
|4.75" (120.7 mm) wide x 6.25" (158.8 mm) deep; 1.5" (38.1 mm) high
|0.8 lbs (0.36 kg)
|SB4 System Bridge; used to combine up to four A-Net streams for transmission over one Cat-5e cable (requires D800 or D800-Dante A-Net Distributor)
