Yamaha MTX5-D Zone Matrix Processor

Advanced Multi-Zone Audio Processing for Commercial Installations
The Yamaha MTX5-D is a powerful 34x16 matrix processor designed for professional multi-zone sound management. Ideal for retail stores, restaurants, conference rooms, and banquet halls, this unit provides seamless audio distribution and digital signal processing (DSP) in one compact, rack-mountable unit. With Dante and YDIF digital networking capabilities, the MTX5-D ensures effortless system expansion while maintaining pristine audio quality.

Flexible Input and Output Options for Versatile Configurations
Equipped with 8 mic/line inputs and 8 analog outputs, the MTX5-D provides flexible routing for a variety of audio sources. The unit also supports 16-channel YDIF and 16-channel Dante digital I/O, making it easy to integrate into existing systems or expand for larger setups. A dedicated MY Card slot allows for further customization, supporting additional input and output expansion cards to suit specific installation needs.

Comprehensive DSP Processing for Superior Sound Control
The MTX5-D offers an extensive range of built-in DSP features, including parametric EQs, compression, auto gain control, and feedback suppression on input channels. Output channels are equipped with advanced processing tools such as room EQ, speaker processing, crossover filters, delay, and limiting, ensuring optimal sound quality tailored to any environment. Additional internal processing features include priority ducking and ambient noise compensation, further enhancing intelligibility and system efficiency.

User-Friendly Configuration with MTX Editor Software
Programming and managing the MTX5-D is intuitive with Yamaha’s MTX Editor software. The graphical interface allows for seamless system configuration, scene recall, and remote control, making it easy for installers and operators to fine-tune audio settings to match the specific needs of any venue. With up to 50 memory presets available, users can quickly switch between customized settings for different events or operational requirements.

Reliable Performance with Low Latency and High Dynamic Range
Designed for professional installations, the MTX5-D delivers outstanding audio fidelity with a frequency response of 20Hz to 20kHz and a dynamic range of 107dB. Its low-latency signal processing (less than 3.0ms AD-DA conversion) ensures real-time audio performance with minimal delay. Built-in phantom power on microphone inputs adds further flexibility for a variety of sound reinforcement applications.

Compact and Efficient Design for Rack-Mount Installations

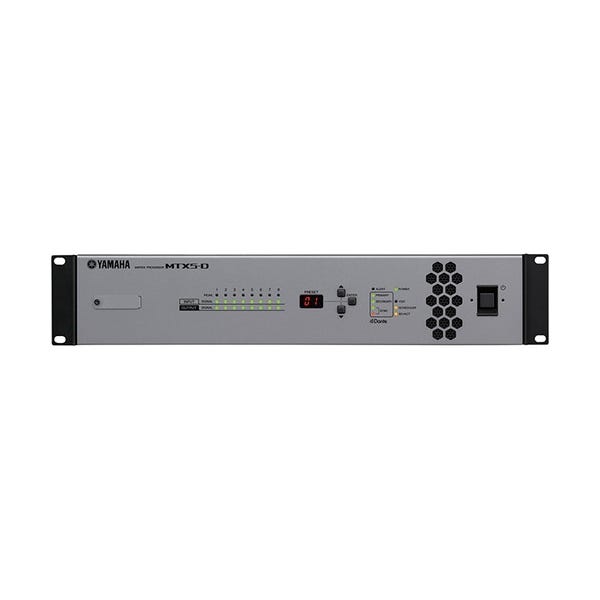

Housed in a 2U rack-mount chassis, the MTX5-D is designed for streamlined integration into AV racks and control rooms. The unit operates with an efficient power consumption of just 65W, making it a reliable and cost-effective choice for permanent audio installations. With a durable build and robust heat diffusion system, the MTX5-D ensures stable performance even in demanding environments.
