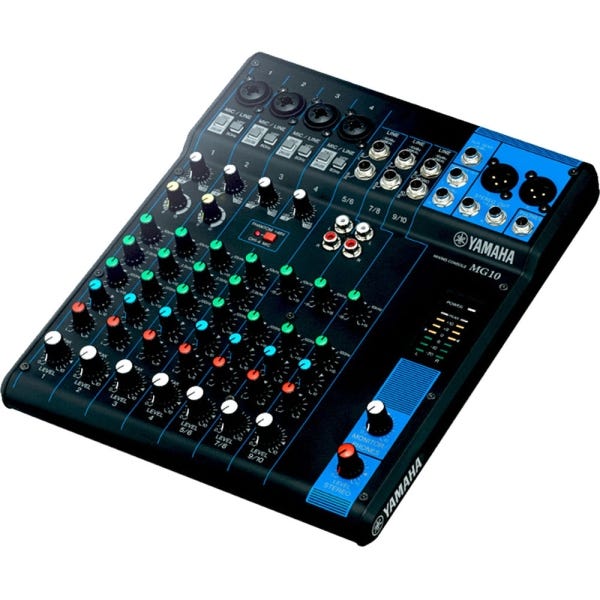

Yamaha MG10 10-Channel Analog Mixing Console with 4 D-PRE Mic Preamps

Yamaha MG10: The Compact 4-Mic Analog Console for Small Bands and Multi-Mic Rooms

The Yamaha MG10 is a 10-channel analog mixing console built for the player who has outgrown a two-channel mixer but does not want a digital learning curve. Four XLR/TRS combo inputs each carry a discrete Class-A D-PRE preamp, and three stereo line channels round the count out to ten, so a four-piece band, a multi-mic podcast panel, or a worship stage can all run through one quiet, road-ready box. There is no menu to dive into and no firmware to update. You plug in, set gain, shape tone, and play. For the first-timer that means a console you can actually learn in an afternoon; for the upgrader it means four real mic preamps where you used to have one or two; and for the spec shopper it means Yamaha's D-PRE circuit in a 4.2-pound metal chassis.

Why Four D-PRE Mic Preamps Change What a Small Mixer Can Do

The headline on the MG10 is its preamp count. Four D-PRE discrete Class-A preamps, each built on an inverted-Darlington circuit, give you natural-sounding lows and smooth highs across the four mono channels. Switchable +48V phantom power drives condenser mics, so you can mix a vocal condenser, a kick mic, and a pair of dynamics at once without running out of inputs. Two mic channels was always the wall on smaller consoles; four is the number that lets a real band, a panel of podcast guests, or a small ensemble all get their own channel, their own EQ, and their own level.

3-Band EQ, a High-Pass Filter, and a 26 dB PAD on Every Mono Channel

Each mono channel gives you a 3-band EQ - High, Mid, and Low - so you can carve a boxy vocal, add air to an acoustic, or pull mud out of a kick without an outboard rack. An 80 Hz high-pass filter on the mic channels clears stage rumble and handling noise before it ever hits the mix, and a 26 dB PAD switch lets you plug a guitar amp or a hot drum mic straight in without clipping the preamp. The stereo channels carry their own 2-band EQ for keyboards, backing tracks, or a stereo instrument feed. It is the tone control a small room actually needs, built into the channel strip.

Connect to a PA, Powered Speakers, or a Recorder - and Send a Monitor Mix

The MG10 puts out a stereo mix on both balanced XLR and 1/4" TRS main outputs, so it drops straight into a PA rack, a pair of powered speakers, or a stereo recorder with whatever connector your gear uses. A single AUX send feeds a monitor wedge or an outboard reverb, a dedicated stereo monitor output lets you run a separate room or stage feed, and a level-controlled headphone jack covers personal monitoring during soundcheck. Per-channel peak LEDs make gain-staging fast - you can see a hot input before you hear it.

Pure Analog, No USB, No Onboard Effects - and That Is the Point

This is the base MG10, not the MG10XU or MG10X. There is no USB interface and no built-in DSP reverb - it is a clean analog console with zero added latency and nothing to configure. If you record through a separate interface, run effects from a pedal or rack, or simply want the most direct signal path from mic to mains, the MG10 is the version that stays out of the way. The rugged metal chassis, 4.2-pound weight, and low-noise external power supply make it equally at home on a rehearsal-room table, a club stage, or in a gig bag.
