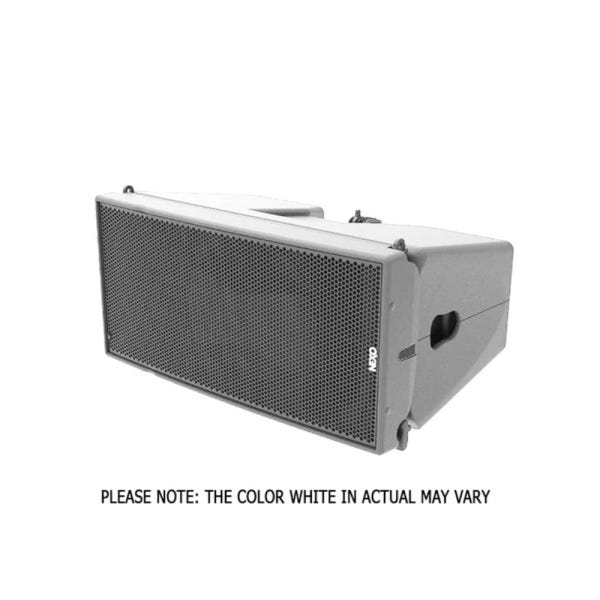

Yamaha GEOM1210-IPW Nexo Geo M, White Line Array Element - Install Version

Unleashing the Power of Yamaha Nexo GEO M1210 Installation Version
Introducing the Yamaha Nexo GEO M1210, a state-of-the-art line array element that seamlessly combines aesthetics with advanced sound technology. Tailored for installation in diverse settings, this white model offers exceptional flexibility and sound quality, making it an ideal choice for venues of all sizes.

Compact Design, Robust Output
The GEO M1210 strikes a balance between compact form and powerful output. Measuring 370mm x 700mm x 446mm and weighing 34 kg, it supports configurations of up to 12 boxes, ensuring high-density sound coverage indoors or outdoors. This line array is built to perform, delivering audio that can handle audiences of up to a thousand people with ease.

Cutting-Edge Audio Engineering
At the heart of the GEO M1210 lies a suite of NEXO’s patented technologies. It features the innovative Hyperbolic Reflective Wavesource (HRW™) for crisp highs and a Phase Directivity Device (PDD™) for precise lows. The robust enclosure mimics the honeycomb structure of NEXO’s flagship STM Series, enhanced by an advanced V-shaped bass port for better sound projection and quality.

Adaptable Directivity for Perfect Coverage
The installation version of the GEO M12 allows for dual vertical dispersion angles—10° for the M1210, providing tailored sound coverage for any event space. Horizontal coverage starts at 80° and can extend to 120° with the addition of a patented Configurable Directivity Device (CDD™). This adjustability is further supported by NS-1 software, offering a choice of 11 angling options between boxes for optimal sound alignment.

Installation-Specific Design Features
This version is designed with a fixed steel grid and an acoustic cloth that aligns with the aesthetic of the GEO M6. Enhanced with an IP54-rated rigging system using safety nuts and captive four-core cables, it ensures both safety and ease of installation. The rigging’s AutoRig™ feature simplifies setup by facilitating automatic connections, allowing for quick and secure installations.

Seamless Integration with NEXO Systems
The GEO M1210 maintains phase consistency with other NEXO units, ensuring that it can be integrated smoothly into larger setups without the risk of comb filtering. This feature makes it an excellent choice for side fills, front fills, or pairing with NEXO subwoofers, providing versatility without the need for complex adjustments.
