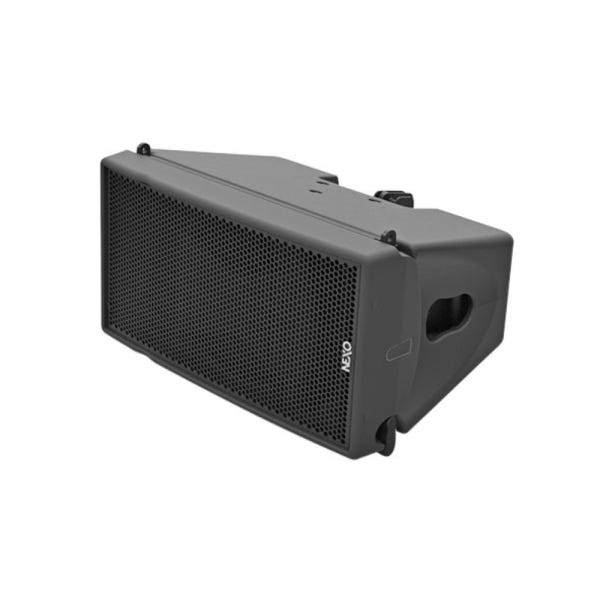

Yamaha GEOM1025-I Nexo Geo M, Line Array Element - Install Version

Introducing the Yamaha Nexo Geo M1025-I: Precision Sound for Installation
Meet the Yamaha Nexo Geo M1025-I, a pivotal addition to the GEO M series designed specifically for installation in mid-sized venues. This line array element carries the hallmark aesthetic design and sonic signature of its family, now in a sleek black installation version. Its ability to deliver flexible and powerful audio solutions makes it a prime choice for venues seeking high-quality sound without compromising on style.

Compact Design with Exceptional Power
The Geo M1025-I maintains a compact frame at just 288mm x 531mm x 355mm and weighs 21 kg, making it an ideal choice for spaces where size and weight constraints are a consideration. Despite its size, it comes equipped with the latest-generation Neodymium drivers, capable of handling arrays of up to 12 boxes. This allows it to comfortably serve audiences of up to 1000, providing clear and powerful sound coverage.

Advanced NEXO Audio Technology
This model is enriched with NEXO’s advanced technological features, ensuring superior sound quality. The high frequencies are enhanced by the patented Hyperbolic Reflective Wavesource (HRW™), and the low frequencies benefit from the Phase Directivity Device (PDD™). The robust enclosure, featuring a honeycomb structure and urethane co-polymer material akin to NEXO’s flagship STM Series, and an optimized V-shaped bass port, all contribute to its outstanding audio performance.

Configurable Directivity for Optimal Sound Distribution
The Geo M1025-I offers a vertical dispersion of 25° and a standard horizontal directivity of 80°, which can be extended to 120° with the optional Configurable Directivity Device (CDD™). This adaptability is further enhanced by NS-1 simulation software, allowing for precise sound tailoring and ensuring that every listener receives the best auditory experience possible.

Installation-Specific Design Features
Designed with the installation process in mind, the Geo M1025-I includes a fixed front steel grid covered by an acoustic cloth that complements the aesthetics of the GEO M6. Its rigging system incorporates safety nuts, and connectivity is streamlined through a cable gland with captive two-core cables, simplifying setup and ensuring a secure installation.

Seamless System Integration
Like other NEXO speakers, the Geo M1025-I shares consistent phase responses, facilitating seamless integration with existing NEXO systems for side fill or front fill applications, or when used with NEXO subs. This compatibility reduces the likelihood of comb filtering and eliminates the need for complex electronic adjustments, offering a plug-and-play solution that maintains audio fidelity.
