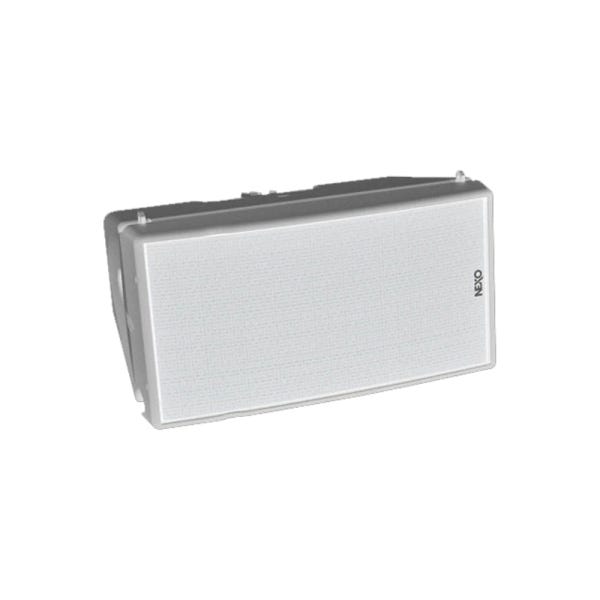

Yamaha GEOM1012-PW Nexo Geo M, White Line Array Element - Touring Version

Yamaha Nexo Geo M1012 Line Array Element: Precision Engineered for Touring
Introducing the Yamaha Nexo Geo M1012, a state-of-the-art line array element tailored for the rigorous demands of touring. As a vital addition to the GEO M range, this model continues the family’s tradition of aesthetic elegance and superior sonic performance, now optimized for mid-size venues. Its versatility in various settings underscores its design, making it an invaluable asset for any touring audio professional.

Compact Size, Robust Sound
Despite its compact dimensions of 288mm x 531mm x 355mm and a weight of just 21 kg, the Geo M1012 packs a formidable punch. It features the latest-generation Neodymium drivers, allowing for configurations of up to 12 boxes, efficiently delivering clear and powerful sound to audiences as large as 1000 people.

Cutting-Edge Audio Technology
This line array leverages NEXO's advanced technical innovations, including the patented Hyperbolic Reflective Wavesource (HRW™) for high frequencies and the Phase Directivity Device (PDD™) for low frequencies. The robust enclosure mimics NEXO’s flagship STM Series with a honeycomb structure and urethane co-polymer material, complemented by an enhanced V-shaped bass port for superior sound dispersion.

Advanced Directivity for Perfect Sound Coverage
The Geo M1012 offers a vertical dispersion of 12°, with a standard horizontal directivity of 80°, adjustable up to 120° using the optional Configurable Directivity Device (CDD™). This flexibility, paired with NEXO’s acclaimed NS-1 simulation software, allows for precise sound shaping and alignment, ensuring optimal coverage and listener experience in any venue layout.

Tour-Ready Rigging and Connectivity
The touring version of the Geo M1012 features a magnetically fixed front steel grill with a mesh back, integrating the AutoRig™ system that simplifies assembly by automatically connecting the front rigging when speakers are aligned. This system is complemented by a guided back rigging for easy angle adjustment, and the connection plate utilizes NL4 connectors, ensuring robust and reliable links for the rigors of the road.

Seamless Integration with NEXO Systems
Maintaining perfect phase alignment with other NEXO speakers, the Geo M1012 ensures easy integration with side fills, front fills, or NEXO subs without the risk of comb filtering or the need for complex electronic adjustments. This phase coherence is crucial for maintaining NEXO's renowned sound quality across various configurations.
