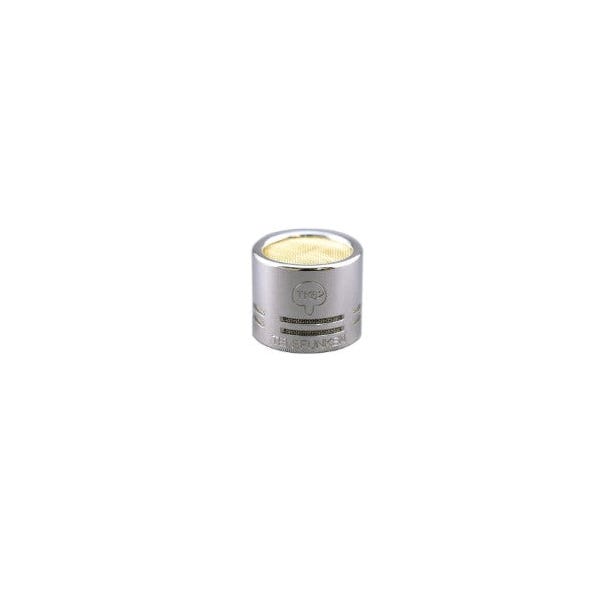

Telefunken TK62 Hypercardioid Capsule

Precision Hypercardioid Capsule for Focused and Detailed Sound Capture
The Telefunken TK62 Hypercardioid Capsule is a high-performance small-diaphragm condenser capsule designed for use with the ELA M 260 tube microphone and the M60 FET microphone. Engineered for precise sound reproduction, the TK62 features a hypercardioid polar pattern that enhances directionality while minimizing off-axis noise. Whether used for capturing cymbals, percussion, or intricate acoustic details, this capsule delivers exceptional clarity and isolation.

Hypercardioid Polar Pattern for Superior Isolation
The TK62’s tightly focused hypercardioid design provides enhanced off-axis rejection, making it an excellent choice for applications where minimizing background noise is critical. This makes it ideal for close-miking instruments in both studio and live environments, ensuring that the intended sound source is captured with precision while reducing unwanted ambient noise and stage bleed.

Flat Frequency Response with Smooth Presence Boost
With a frequency response that remains flat from 150 Hz to 3 kHz, the TK62 ensures natural sound reproduction across a wide range of instruments. It features a slight dip at 6 kHz, followed by a smooth presence peak at 8 kHz, adding an airy and refined top-end character. This tailored frequency response makes the capsule particularly well-suited for cymbals, percussion, and bright acoustic sources that benefit from a controlled high-frequency boost.

Gold-Sputtered Diaphragm for High-Fidelity Audio Capture
The TK62 is equipped with a 6-micron gold-sputtered membrane, measuring 15mm in diameter. This ultra-thin diaphragm is designed to provide fast transient response, ensuring that the nuances of each sound source are captured with precision and accuracy. The gold-sputtered construction also enhances durability, ensuring long-term reliability in both studio and live settings.

Strictly Matched for Consistency and Stereo Applications
Each TK62 capsule is tested to a strict ±1dB sensitivity tolerance, ensuring consistency between units. This level of precision makes the TK62 an excellent choice for stereo recording setups, where balanced and phase-coherent imaging is essential. Whether used individually or as part of a matched pair, this capsule maintains a consistent and reliable sound profile.

Ideal for Live Sound and Studio Recording
Designed for versatility, the TK62 excels in both live performance and studio environments. Its ability to capture detailed transients with minimal coloration makes it an invaluable tool for engineers and musicians working with drum overheads, acoustic instruments, and orchestral elements. The capsule’s focused pickup pattern also makes it an ideal solution for isolating specific sound sources in crowded or noisy recording situations.
