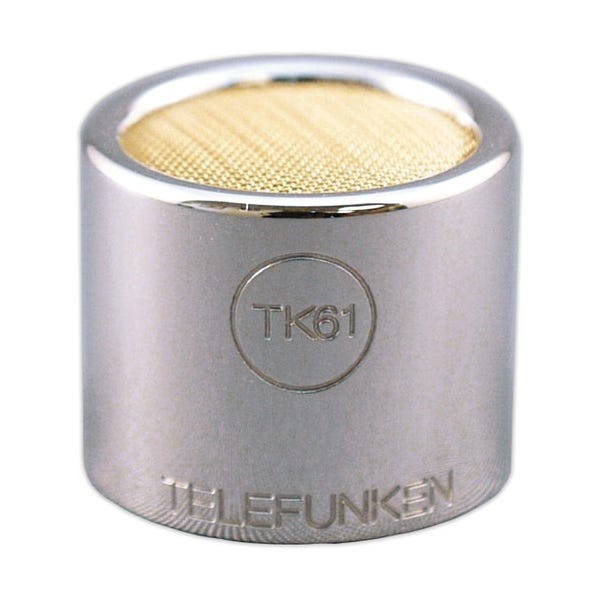

Telefunken TK61 Omnidirectional Capsule

Omnidirectional Capsule for Natural and Spacious Audio Capture
The Telefunken TK61 Omnidirectional Capsule is a premium small-diaphragm condenser capsule designed for use with the ELA M 260 tube microphone and the M60 FET microphone. Engineered for precise and natural sound reproduction, the TK61 features an omnidirectional pickup pattern that captures sound evenly from all directions. Whether recording orchestras, ensembles, or room ambiance, this capsule ensures a balanced and immersive audio experience.

Omnidirectional Polar Pattern for True-to-Life Sound
The TK61’s omnidirectional design captures sound from all angles, making it perfect for applications where a wide, open sound is desired. This pattern is ideal for recording ambient room tones, acoustic ensembles, and orchestral performances, ensuring a realistic and spatially accurate representation of the sound environment. Unlike directional capsules, the TK61 avoids proximity effect, providing a smooth and consistent low-end response.

Flat Frequency Response with Smooth High-End Presence
With a flat frequency response from 20 Hz to 5 kHz and a subtle presence boost at 8 kHz, the TK61 delivers a transparent and open sound. This design ensures that instruments and voices are captured with clarity while maintaining the natural timbre of the source. The gentle high-frequency lift adds airiness and definition, making it particularly well-suited for capturing room ambiance and delicate acoustic performances.

Gold-Sputtered Diaphragm for Pristine Audio Quality
The TK61 features a 6-micron gold-sputtered membrane measuring 15mm in diameter, ensuring superior transient response and detailed sound reproduction. This ultra-thin diaphragm enhances the capsule’s ability to capture the full dynamic range of an instrument or voice, making it an excellent choice for high-resolution recording applications. Its high sensitivity allows for capturing subtle details without introducing unwanted noise or distortion.

Strict ±1 dB Sensitivity Matching for Stereo Recording
Every TK61 capsule is rigorously tested to meet a strict ±1 dB sensitivity tolerance, ensuring precise matching for stereo applications. Whether used in spaced pair configurations, ORTF, or as part of the ELA M 260 Tri-Mono system, the TK61 delivers consistent and phase-coherent recordings. This level of precision makes it an indispensable tool for engineers looking to achieve natural stereo imaging.

Versatile for Studio, Broadcast, and Live Applications
Designed for both studio and live sound applications, the TK61 is highly versatile. Its omnidirectional pattern allows it to excel in capturing room acoustics, choral performances, drum overheads, and grand piano recordings. When paired with diffuse field spheres in the ELA M 260 Tri-Mono system, it becomes an essential tool for immersive room capture, ensuring that the ambience and energy of a performance are faithfully preserved.
