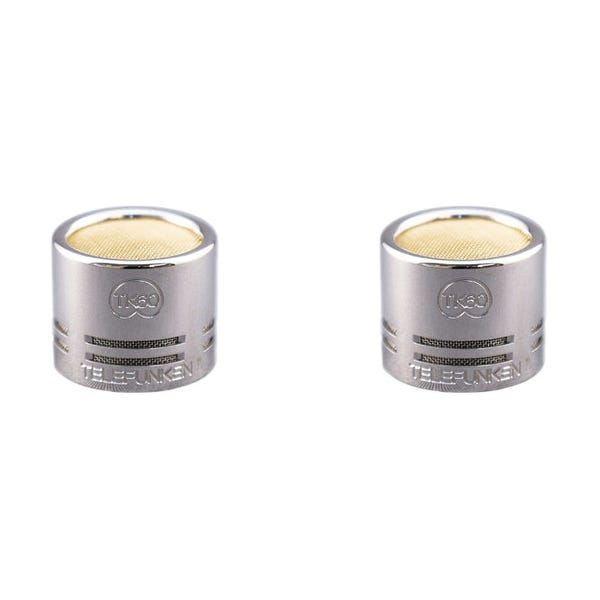

Telefunken TK60-S Small-Diaphragm Cardioid Capsules (Matched Pair)

Matched Cardioid Capsules for Precision Instrument Recording
The Telefunken TK60-S is a matched pair of high-performance small-diaphragm condenser capsules designed for use with the ELA M 260 tube microphone and the M60 FET microphone. Engineered for exceptional accuracy and consistency, these cardioid capsules capture sound with a natural and focused response, making them ideal for drum overheads, acoustic guitars, and other instruments that require precise transient reproduction. Their strict ±1 dB sensitivity tolerance ensures balanced stereo imaging for professional recording applications.

Cardioid Polar Pattern for Focused Sound Capture
The TK60-S utilizes a cardioid pickup pattern that effectively isolates the intended sound source while minimizing unwanted background noise. This directional design makes it perfect for close-miking applications, ensuring a clean and well-defined signal. Whether used in a studio or live environment, these capsules help maintain a clear and articulate recording with reduced room reflections and bleed from other instruments.

Flat Frequency Response with a Defined Presence Boost
With a flat response from 150 Hz to 7 kHz and a smooth presence peak at 8 kHz, the TK60-S capsules offer a balanced tonal character with a touch of brightness for added definition. This makes them particularly well-suited for capturing the natural resonance of acoustic instruments and the crisp articulation of drum overheads. The extended midrange response ensures that recordings maintain depth and clarity without excessive coloration.

Gold-Sputtered Diaphragm for High-Resolution Audio
Each TK60-S capsule is built with a 6-micron gold-sputtered membrane, measuring 15mm in diameter. This lightweight diaphragm provides fast transient response, ensuring every subtle detail is captured with precision. The gold-sputtered construction enhances durability while maintaining the integrity of the audio signal, making these capsules an excellent choice for critical recording sessions.

Matched Pair for Stereo Recording Applications
Every TK60-S set undergoes meticulous testing to ensure a strict ±1 dB sensitivity tolerance, guaranteeing phase coherence and uniformity between both capsules. This precision matching is essential for stereo recording techniques such as XY, ORTF, and spaced pair configurations, delivering accurate imaging and natural spatial depth. Whether recording an ensemble, a grand piano, or drum overheads, these matched capsules provide a seamless and immersive sound.

Versatile for Studio and Live Sound Applications
Designed for professional recording and live performance setups, the TK60-S capsules excel in a variety of applications. Their cardioid pattern allows them to be used on stage for isolating individual instruments or in the studio for capturing the full dynamic range of acoustic performances. Their ability to handle fast transients and rich harmonic content makes them a go-to choice for engineers working with percussion, strings, and brass.
