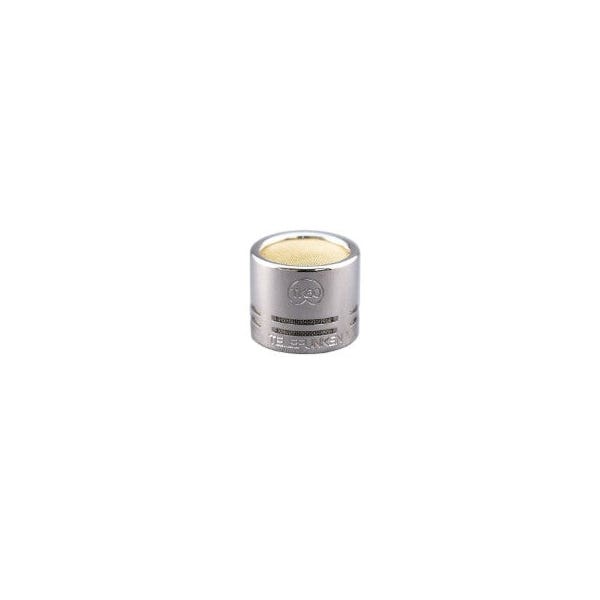

Telefunken TK60 Cardioid Capsule

Precision Cardioid Capsule for Natural and Focused Sound
The Telefunken TK60 is a high-performance small-diaphragm cardioid condenser capsule designed for use with the ELA M 260 tube microphone and the M60 FET microphone. Engineered for clarity and accuracy, this capsule provides a focused sound capture while preserving the natural tone of acoustic instruments. Its exceptional transient response and balanced frequency range make it an excellent choice for drum overheads, acoustic guitar, and other detailed recording applications.

Cardioid Polar Pattern for Directional Sound Isolation
With its cardioid pickup pattern, the TK60 captures sound from the front while minimizing ambient noise from the sides and rear. This directional sensitivity allows for precise isolation of instruments, making it ideal for recording in environments where control over bleed and background noise is necessary. Whether used in a live setting or in the studio, this capsule ensures clean and well-defined recordings.

Balanced Frequency Response with Natural Presence Boost
The TK60 features a flat frequency response from 150 Hz to 7 kHz, ensuring accurate reproduction of midrange and low-frequency details. A smooth, airy presence peak at 8 kHz adds clarity and articulation to high frequencies, making this capsule particularly well-suited for capturing the shimmer of cymbals, the resonance of strings, and the crispness of percussion. This balance allows recordings to retain depth and character without excessive coloration.

Gold-Sputtered Diaphragm for High-Fidelity Sound Reproduction
Equipped with a 6-micron gold-sputtered membrane, the TK60 provides superior transient response and low self-noise. The 15mm diaphragm is designed to accurately capture fine details, delivering a sound that is both rich and dynamic. The gold-sputtered construction not only enhances durability but also ensures consistent performance over extended use, making it a reliable choice for professional recordings.

Strict ±1 dB Sensitivity Tolerance for Stereo Applications
Each TK60 capsule is rigorously tested to meet a strict ±1 dB sensitivity tolerance, ensuring matched consistency for stereo recording. This makes it an excellent choice for spaced pair, XY, or ORTF stereo techniques, delivering precise imaging and natural depth. Whether capturing wide stereo fields or focused instrument placement, this capsule maintains clarity and balance in every take.

Versatile for Studio and Live Performance Applications
Designed to handle a variety of recording situations, the TK60 excels in both studio and live performance environments. Its ability to capture fast transients and rich harmonic content makes it a top choice for drum overheads, grand pianos, brass instruments, and acoustic stringed instruments. Whether placed close to a sound source or used in a stereo configuration, the TK60 delivers detailed and natural results.
