Tascam MM-4D/IN-E 4-Channel Mic / Line Input Dante Converter w/ Built-In DSP Mixer

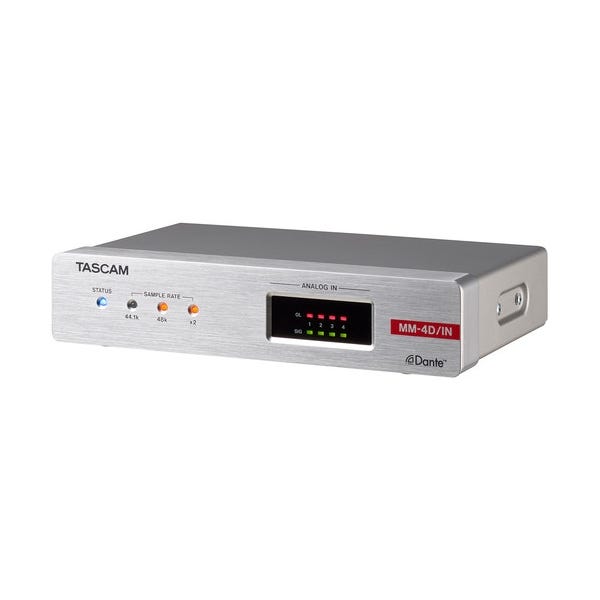

Introducing the Tascam MM-4D/IN-E
The Tascam MM-4D/IN-E is a cutting-edge 4-channel mic/line input Dante converter that incorporates a robust built-in DSP mixer. This device is expertly crafted to meet the rigorous demands of both the contractor market and the professional audio scene. Offering versatility with its compact size, which is half that of a standard 1U rack, this unit is perfectly suited for a variety of Dante system configurations. It supports up to 96kHz/24bit audio resolution and uses Euroblock connectors for seamless integration.

Premium Audio Quality with Advanced Preamps
This converter is equipped with high-grade Tascam mic preamps that ensure studio-quality sound. These preamps support a dynamic input range from -70 dBu to +26 dBu, feature an equivalent input noise of less than -125 dB, and achieve a signal-to-noise ratio of over 108 dB. The added functionality of phantom power (+48V) and remote gain control via TASCAM DCP CONNECT software or Dante enhances its utility, making it adaptable for various audio setups.

DSP Mixer for Complex Audio Solutions
The MM-4D/IN-E shines with its integrated 8 in/4 out matrix mixer, allowing the user to mix inputs from 4-channel mic/line and 4-channel Dante inputs, adjusting the outputs across four zones. It includes a compressor, 4-band parametric EQ, auto level, and more effects that can be finely adjusted to suit the needs of the mic/line equipment used, ensuring tailored audio delivery in every scenario.

Efficient Setup with PoE Capability
Designed with practicality in mind, the MM-4D/IN-E supports Power over Ethernet (PoE), allowing it to be powered via a PoE-compatible network switch. This feature significantly reduces the need for traditional power sources and lowers installation costs, making it an efficient solution for various professional environments.

Flexible Control and Routing Options
This Dante converter offers flexible routing options, enabling users to select either the 4 mic/line inputs or the output from the built-in matrix mixer as the source for the 4 Dante outputs. It can also function simply as a mic/line input unit when bypassing the matrix mixer. Control over these features is facilitated through dedicated software that caters to both system integrators and end-users, ensuring ease of use and comprehensive control over the system's configuration.

Compact and Comprehensive Feature Set
Despite its compact half-rack size, the MM-4D/IN-E is loaded with features that cater to professional audio needs. It includes visual indicators for connection and signal status, supports up to 50 scene presets for different environmental settings, and offers configurable reference levels for precise audio calibration. It is also equipped with surface rack mountable angles for convenient under-desk installation.
