Tascam ML-4D/OUT-X 4-Channel Line Output Dante Converter w/ Built-In DSP Mixer

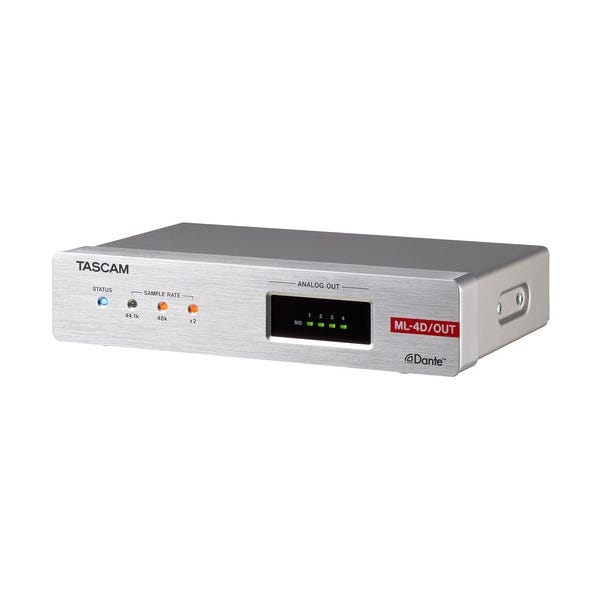

Explore the Tascam ML-4D/OUT-X
The Tascam ML-4D/OUT-X is a state-of-the-art 4-channel line output Dante converter integrated with a DSP mixer, crafted to address the specific needs of the professional audio and contractor markets. This compact unit expertly converts Dante input signals into robust 4-channel line output signals using XLR connectors, accommodating up to 96kHz/24bit audio resolution. Its sleek design, occupying only half the size of a standard 1U rack, makes it an ideal choice for varied Dante system applications as an efficient analog output unit.

Advanced Audio Processing Features
This converter is not just about converting signals; it comes equipped with a built-in 4x4 matrix mixer that allows users to mix 4-channel Dante inputs and tailor output settings across four zones. The inclusion of ducking and ambient noise compensation functions means that it dynamically adjusts input levels in response to environmental noise, ensuring clear audio output in diverse settings.

Superior Sound Control
The ML-4D/OUT-X enhances audio outputs with a comprehensive array of DSP effects including a 10-band EQ, high and low-pass filters, delay, and limiter. These tools are indispensable for fine-tuning audio to match the acoustics of different venues or to the specific needs of powered speakers, thereby ensuring optimal sound quality tailored to each unique environment.

Efficient and Flexible Connectivity
With its capability for flexible input/output routing, the ML-4D/OUT-X serves dual functions—either as a straightforward line output unit or as a part of a complex Dante network using its matrix mixer for 4-channel Dante outputs. The unit’s support for Power over Ethernet (PoE) eliminates the need for AC adapters, reducing both power supply construction fees and installation costs.

Remote Management for Tailored Audio Settings
Adjusting settings remotely is a breeze with the Tascam ML-4D/OUT-X, thanks to its dedicated control software available for various platforms including Windows, macOS, Android, and iOS. The software comes in two variants: TASCAM DCP CONNECT for system integrators needing detailed configuration control, and TASCAM EZ CONNECT for end-users desiring straightforward operational control.

Compact Design and Visual Monitoring
This half-rack mountable converter is designed not only for space efficiency but also for comprehensive monitoring with its visual indicators showing LAN/Dante connection status and audio sample rates. Additionally, it includes signal indicators for monitoring line output signals and configurable reference levels, further enhancing its adaptability in professional setups.
