Symetrix ARC-K1e Black Modular Remote Control (B-Stock)
was
$307.44
Special Price
$261.32
Wall-mounted DSP remote, push-button encoder, LED level display, RJ45 power and data, programmable two-parameter control
Availability:
In Stock
SKU
ARC-K1e - Black B-Stock
This item is in B-Stock condition. B-Stock items are open box items that contain the original product, accessories and packaging as a new item but have been removed from the box and repackaged. These items are usually customer returns. All items are fully inspected and tested before assigning a condition. All B-Stock items include the original manufacturer's warranty.
Features:
Modular wall controller for Symetrix DSP systems
Push-button rotary encoder for parameter adjustment
Controls one or two assignable DSP parameters
8-segment LED ladder for visual level indication
Two LEDs indicate active parameter selection
RJ45 connection for power and data
Supports idle mode for light-sensitive spaces
Hardware lockout pins for key switch integration
Software programmable lockout functions
Fits standard single-gang wall boxes
White Decora faceplate with protective overlay
Modular Wall Remote Control for Symetrix DSP Systems

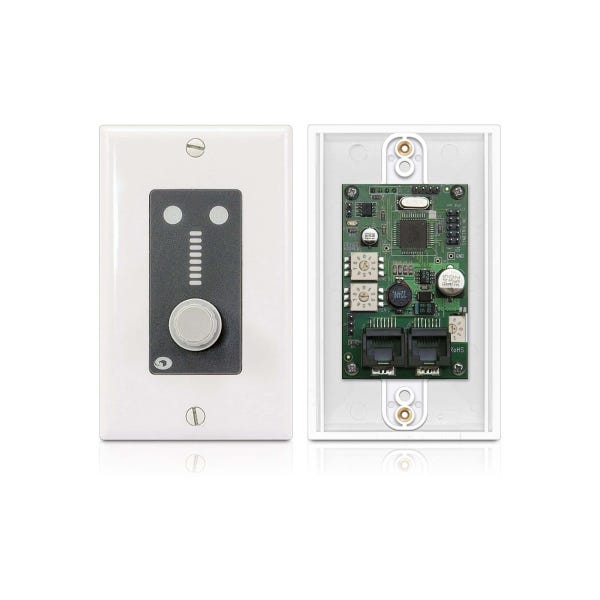

The Symetrix ARC-K1e is a modular wall-mounted remote control designed to manage parameters within Symetrix SymNet Audio Matrix, Integrator Series, and Jupiter DSP hardware. It provides simple, intuitive adjustment of one or two programmable parameters through a push-button rotary encoder. Ideal for conference rooms, houses of worship, theaters, and commercial AV installations, the ARC-K1e delivers reliable in-wall control without exposing the full DSP interface to end users.
Push Button Rotary Encoder with LED Level Feedback
At the center of the ARC-K1e is a rotary encoder with push-button functionality, allowing users to switch between and adjust two assigned DSP parameters. An 8-segment LED ladder provides clear visual feedback of relative level or parameter position. Two additional indicator LEDs show which parameter is currently active, ensuring straightforward operation in everyday use.
RJ45 Connection for Power and Data Integration
A single RJ45 connection supplies both power and communication data to the ARC-K1e, simplifying installation and cable management. The unit supports control, power, and a single channel of ARC audio over the same connection. This streamlined design reduces wiring complexity and supports integration into structured cabling systems commonly used in commercial AV environments.
Idle Mode and Lockout for Installed Environments
For light-sensitive environments such as theaters and performance venues, the ARC-K1e includes an idle mode option that dims or reduces LED brightness when not in active use. Hardware lockout pins allow integration with an installer-supplied key switch, while software lockout functionality can also be configured independently. These options provide security and prevent unauthorized adjustments in public installations.
Software Configurable Control with SymNet Composer
All parameter assignments, limits, and firmware updates are configured using SymNet Composer or Designer software. The External Controller Wizard simplifies programming and allows integrators to define precise control ranges and behaviors. This flexibility makes the ARC-K1e suitable for volume control, source selection, or other DSP parameter adjustments tailored to specific rooms.
Single Gang Decora Form Factor for Clean Installation
The ARC-K1e fits into standard US single-gang wall boxes for in-wall or surface-mount applications. It includes a white Decora-style faceplate and splash-resistant overlay for durability. Its clean design blends into professional AV installations while maintaining dependable control functionality.
**This B-Stock product has either been returned from a prior customer order or was used as a demo and repackaged. The product box may show signs of wear, and has had the manufacturer seal broken, but the product should remain in working condition. The item may show some signs of use, but it should not affect performance. All B-Stock items include the original manufacturer warranty, as we are an authorized reseller for this brand. This product is also covered under our return policy.
| MPN | ARC-K1e - Black (B-Stock) |
|---|---|
| Color | Black |
| Brand | Symetrix |
| Product Condition | B-Stock |
| Availability | In Stock |
