Studio Technologies Model 5110E Mic/Line Input Module - EBU-Compatible Audio Level Version

What Is the Studio Technologies M5110E?
The Studio Technologies M5110E is a versatile 2-channel mic/line input module designed for broadcast, live performance, and general audio applications. As a highly technical yet user-friendly building block, it offers selectable input gain, 48V phantom power, status LED indicators, and comprehensive analog and digital audio outputs. The Model 5110E ensures high-performance audio in a compact form, making it an essential component for professionals seeking reliable and flexible audio solutions.

Key Specifications and Power Requirements
The Model 5110E operates on a 12Vdc external power source, with an acceptable input voltage range from 10 to 18V. This flexibility allows the use of various power sources, enhancing the module's adaptability in different settings. The internal power supply circuitry is finely tuned to support both the analog and digital components of the module, ensuring seamless operation and consistent performance across all audio outputs.

Connectivity and Installation
This module is equipped with standard connectors to streamline integration into existing systems. It features gold-plated 3-pin female XLR connectors for input audio connections and a DIN 1.0/2.3 coaxial connector for the digital audio output. The analog outputs utilize a 5-position header connector, while power and data bus signals are managed via a 4-position header. These connections are designed for easy and reliable interfacing, supporting both permanent and field applications.

Compliance and Application Versatility
The M5110E is compliant with the European Broadcast Union (EBU) standards, ensuring it meets specific audio reference levels essential in professional European broadcasting environments. Its applications are broad, ranging from sports broadcasting and remote news gathering to serving as a critical component in government and corporate audio infrastructure. The flexibility and professional-grade audio of the M5110E make it a preferred choice for projects of varying scales and complexities.

Advanced Features and User Control

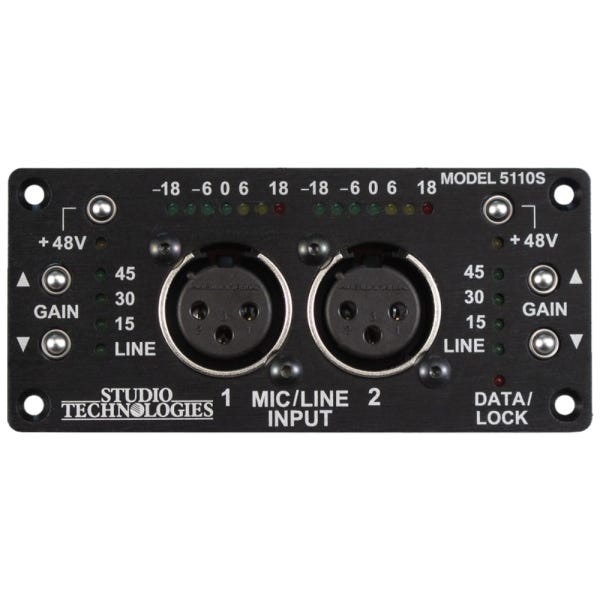

Advanced features of the M5110E include a user control lock-out to prevent unauthorized settings changes and a remote monitoring and control capability, which enhances usability in complex setups. The front panel of the module houses six pushbutton switches for quick adjustment of input gain and phantom power, complete with LED indicators and a level meter for precise control.
