Studio Technologies M5154-05 Model 5154 Video Generator/Audio De-Embedder Module with Optical Input

Introduction to Model 5154 Video Generator/Audio De-Embedder Module

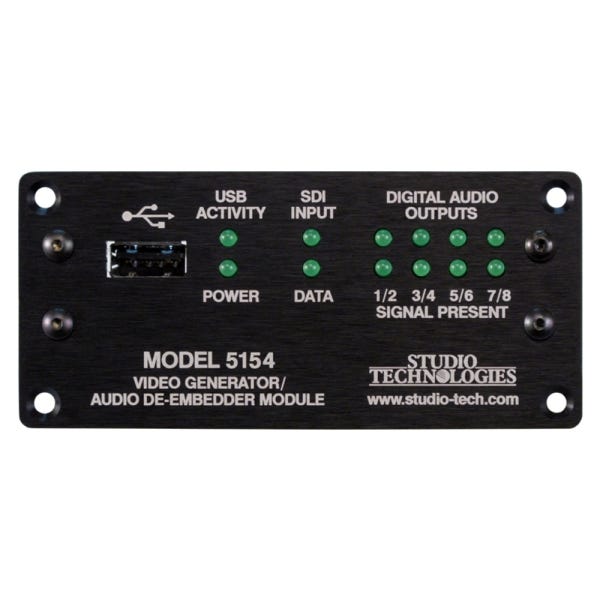

The Studio Technologies Model 5154 Video Generator/Audio De-Embedder Module is an advanced, compact solution designed for diverse settings including broadcast, post-production, and corporate environments. This module is a key component of the 5100-Series, providing robust audio and video functionalities despite its small footprint. Primarily, it allows for the de-embedding of up to eight audio channels from HD- or 3G-SDI video streams, ensuring continuous output via its sophisticated signal processing capabilities.

SDI Signal Management Explained
Understanding the connectivity and signal flow of the Model 5154 is crucial for optimal setup and operation. The module accepts SDI signals through standard BNC connectors, or optional fiber optic inputs, and maintains a continuous SDI output regardless of the input status. This is achieved through its auto-generating feature that creates a broadcast-standard SDI signal whenever the input is disconnected, providing a seamless feed to downstream devices.

Custom Video Output Features
A standout feature of the Model 5154 is its ability to store and output custom high-definition video images. This flexibility allows users to load images via a USB flash drive into the module’s memory, which then automatically displays the appropriate image based on the current SDI input status. Whether it’s a "720" or "1080" format, the module ensures your specific visual content is presented whenever the standard SDI input is unavailable.

Robust Audio Handling Capabilities
The audio capabilities of the Model 5154 are extensive, allowing for the de-embedding of four stereo digital audio signals from the SDI source. These audio channels are output through a 9-pin D-subminiature connector, adhering to the AES3 digital audio standard. This feature is crucial for environments that require reliable and high-quality audio extraction from video streams, enhancing the module’s versatility in professional setups.

Operational Flexibility and Compatibility
The Model 5154 is engineered for ease of use and flexibility in various professional environments. It requires minimal connectivity, with just a few signal connections and a standard DC power supply. Its compatibility with other 5100-Series modules via a local RS-485 data bus adds to its utility, allowing for comprehensive configuration and control, particularly in complex installations.
