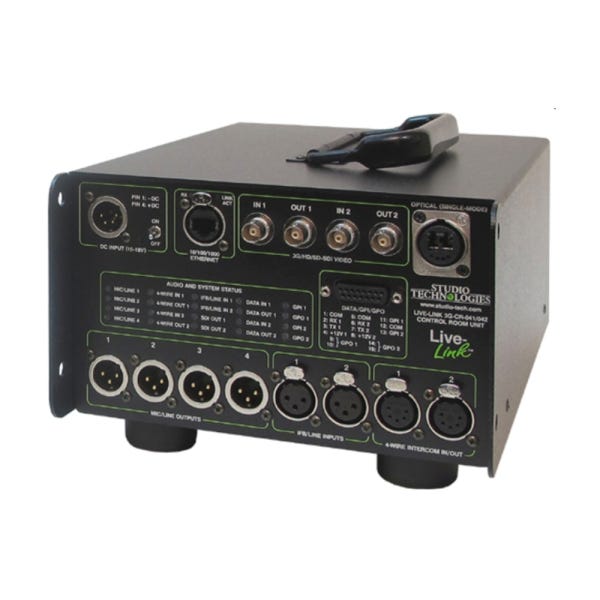

Studio Technologies LL-3G-CR-042 Live-Link Sr. Control Room 4-Wire Intercom with One OpticalCON DUO Connector (Rack-Ready Version)

Professional-Grade Control Room Intercom for Broadcast Excellence
The Studio Technologies LL-3G-CR-042 Live-Link Sr. Control Room 4-Wire Intercom is a rack-ready powerhouse designed to revolutionize your broadcast setup. This sophisticated unit supports four paths of 3G digital video, four mic/line inputs, line/IFB outputs, and a 2-channel intercom system. With its single OpticalCON DUO connector, it establishes a robust link between your control room and camera, streamlining your production workflow and enhancing communication efficiency in a compact, rack-mountable form factor.

Unmatched Video Connectivity for Seamless Broadcasting
Utilizing two strands of single-mode fiber-optic cable (not included), the LL-3G-CR-042 offers exceptional video connectivity. It supports two 3G/HD/SD-SDI sends from camera to control room and two 3G/HD/SD-SDI returns from control room to camera. This bidirectional capability ensures high-quality video transmission, allowing for real-time monitoring and adjustments crucial in live broadcast scenarios and complex productions.

Superior Audio Integration for Crystal-Clear Communication
Audio professionals will appreciate the unit's comprehensive audio features. Four analog mic/line sends with selectable gain and 48V phantom power cater to various audio input needs on set. The two analog line-level audio returns and dedicated 2-channel IFB output with 28V beltpack power ensure crystal-clear communication between the control room and on-site talent, keeping your entire team in sync during critical moments of your production.

Advanced Intercom System for Seamless Team Coordination
The LL-3G-CR-042 excels in team communication with its advanced intercom system. The control room unit features a 2-channel 4-wire interface, while the camera end unit offers a 2-channel party-line (PL) interface with auto nulling and 28V beltpack power. This setup ensures clear, reliable communication between control room personnel and on-site camera operators, crucial for coordinating complex productions and live events.

Comprehensive Data and Remote Control Capabilities
Stay in command of your production with the LL-3G-CR-042's extensive data and remote control options. It offers Ethernet (10/100/1000), RS-232, RS-422, and GPI/GPO interfaces, allowing for seamless integration with various control systems and devices. This versatility ensures that you can adapt to any production environment or workflow requirement, from simple setups to complex, multi-camera productions.

Designed for Rack-Ready Integration
As a rack-ready version, the LL-3G-CR-042 is built for seamless integration into your existing infrastructure. It includes a universal input power supply (100-240V, 50/60 Hz) with a 12 Vdc output, ensuring compatibility worldwide. This unit is designed to be installed in an optional Live-Link Sr. Rack Mounting Enclosure, making it an ideal choice for permanent studio setups or mobile production units where space efficiency is crucial.

Robust Build for Reliable Performance
Studio Technologies has engineered the LL-3G-CR-042 with durability and reliability in mind. Its robust construction ensures consistent performance in various production environments, from controlled studio settings to demanding remote locations. The rack-ready design not only saves space but also protects the unit from the rigors of professional use, ensuring long-term reliability for your critical broadcast operations.
