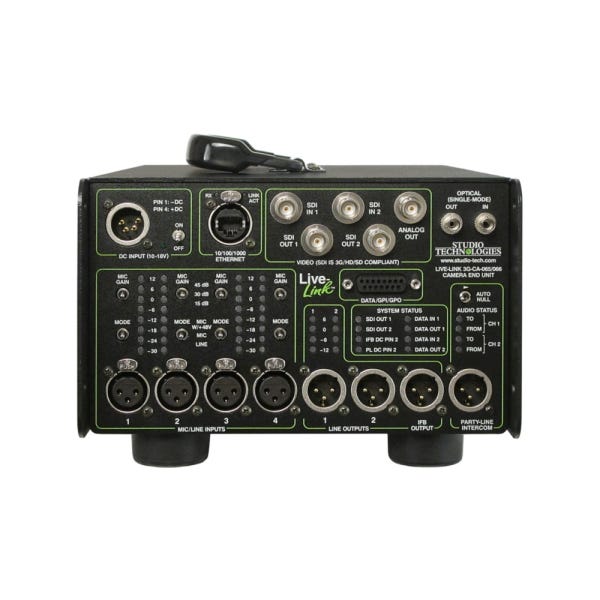

Studio Technologies LL-3G-CA-065 Live-Link Sr. Camera End with Two ST Optical Connectors (Portable Version)

Introduction to Studio Technologies LL-3G-CA-065
Studio Technologies LL-3G-CA-065, also known as the Live-Link Sr. Camera End with Two ST Optical Connectors, is a portable powerhouse for modern broadcasting needs. This device facilitates robust transmission of multiple video and audio signals between a camera and a control room, utilizing two strands of single-mode fiber-optic cable. Ideal for outside broadcast applications, it ensures seamless signal integrity over long distances without the burden of heavy cabling.

Core Video Capabilities
This unit excels in handling high-quality video signals, supporting two paths each of 3G, HD, and SD-SDI sends and returns. This functionality ensures high-resolution video content moves flawlessly from the camera to the control room and back. Additionally, the device includes an analog video return path, enhancing its versatility in various broadcasting environments.

Advanced Audio Features
The LL-3G-CA-065 is not just about video; it also offers comprehensive audio solutions. It can transmit four channels of mic or line audio with adjustable gain and the essential 48 V phantom power, perfect for professional-grade audio captures. For incoming audio, it provides two line-level returns and a two-channel IFB output with 28 V power to support standard broadcast beltpacks.

Intercom Integration
A standout feature is its intercom functionality. The unit bridges 4-wire intercom systems from the control room to a 2-wire system at the camera end. It features auto nulling for clearer communication and supports a two-channel party-line interface, crucial for effective team coordination during live broadcasts.

Data and Control Links
The LL-3G-CA-065 also serves as a hub for data and remote control operations. It includes Ethernet connectivity for network integration and supports RS-232, RS-422, and GPI/GPO interfaces. These features are vital for remote camera control and for ensuring all equipment communicates seamlessly during complex productions.
