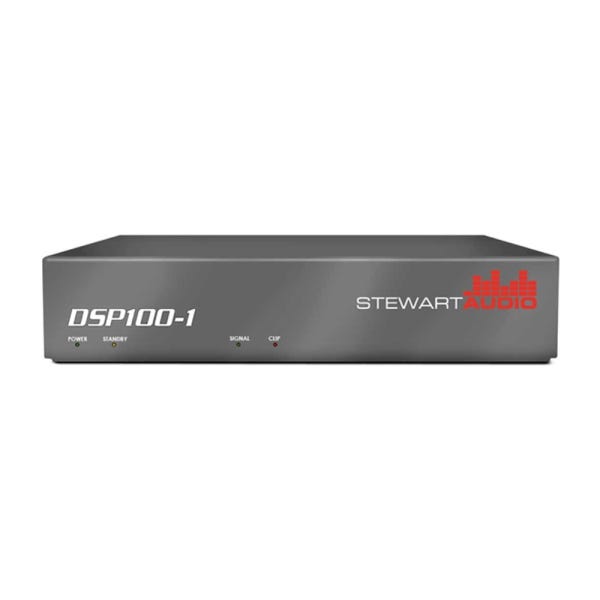

Stewart Audio DSP100-1-CV Digital Matrix Processor

Compact DSP Amplifier Designed for Zone-Based Audio Optimization
The Stewart Audio DSP100-1-CV is a mono amplifier delivering 100 watts into 70V or 100V constant voltage systems, with full onboard DSP for advanced audio control. Built to power and fine-tune individual audio zones, this amplifier is ideal for commercial environments such as restaurants, retail stores, schools, and office spaces. Its built-in DSP processing and flexible connectivity options give integrators complete control over audio performance without adding bulky external gear.

Powerful DSP Tools for Zone Tuning and Speaker Management
The DSP100-1-CV includes a comprehensive digital signal processor that allows for precision tuning of each zone. With three gain stages, high-pass and low-pass filters, parametric EQ, compression, and limiting, this amplifier makes it possible to adjust for speaker characteristics, room acoustics, and desired tonal balance. These tools ensure that every zone gets optimal audio clarity and performance without distortion or overdriving the system.

100W Output for 70V or 100V Distributed Systems
This model delivers 100 watts of clean, efficient power into 70V or 100V speaker lines, making it perfect for distributed commercial audio systems. Whether you're managing background music, announcements, or paging, the DSP100-1-CV supports long cable runs and multiple speakers without loss in quality. Its mono constant voltage output simplifies system wiring and reduces load-balancing challenges across large installations.

Flexible Inputs with Analog and Optional Dante Network Audio
The DSP100-1-CV is available with factory-installed input options that include traditional analog or Dante™ digital audio networking. The optional Dante version supports up to two channels of audio over standard network infrastructure, allowing seamless integration with modern AV-over-IP systems. This makes it a future-proof choice for facilities moving toward fully networked audio systems.

Simple Configuration with USB-Based Programming
Setup is fast and repeatable using the built-in USB port. Installers can quickly configure DSP parameters using compatible software, streamlining the deployment of multiple amplifiers across large systems. This feature not only saves time but ensures consistency across zones, especially in multi-location or franchise environments.

Cost-Effective Solution for Commercial Audio Installations
Combining robust power output, full DSP functionality, and scalable input options, the DSP100-1-CV offers an unmatched value for integrators and audio professionals. Its compact form factor, reliable performance, and advanced features make it a go-to solution for installations where space, budget, and sound quality all matter.
