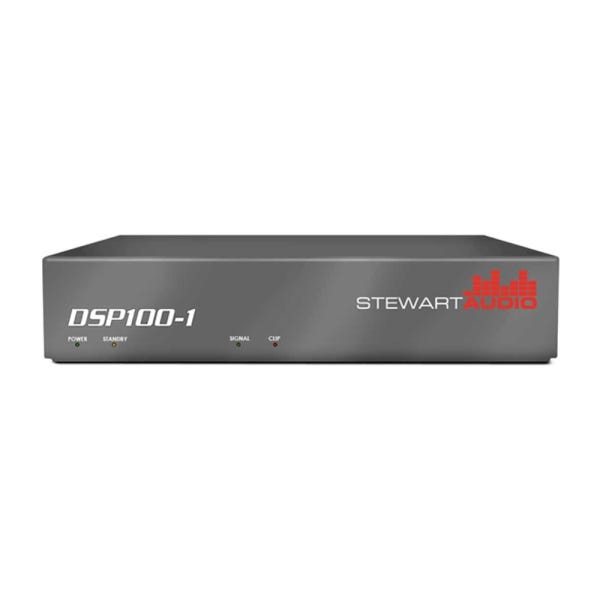

Stewart Audio DSP100-1-CV-D Enabled Amplifier

Compact DSP Amplifier with Dante for Zoned Audio Systems
The Stewart Audio DSP100-1-CV-D is a mono amplifier delivering 100 watts at 70V or 100V with integrated DSP and Dante™ network audio support. Designed for commercial environments that demand flexible zone control, this amplifier is ideal for conference rooms, classrooms, retail stores, restaurants, and other installations requiring precise audio optimization. Its compact 1/2 rack-width design fits into tight spaces, while the built-in DSP and Dante connectivity give integrators the power and flexibility to handle modern AV demands.

Dante Network Audio for Simplified Routing and Control
With two Dante input channels, the DSP100-1-CV-D connects directly to audio-over-IP networks, allowing digital audio to be routed over standard Ethernet infrastructure. This eliminates the need for analog cabling across long distances and simplifies integration into centralized DSP and control systems. Whether deployed in a new networked audio environment or added to an existing Dante ecosystem, this amplifier makes digital distribution more efficient and scalable.

Integrated DSP for Customizable Zone Tuning
This amplifier includes a full-featured digital signal processor, allowing users to shape audio output based on room acoustics and system needs. With a full cross-point mixer, equalization, filtering, and limiting, the DSP enables precise zone control without the need for external processors. These features make it easy to address acoustic challenges, improve speech intelligibility, and maintain consistent sound quality across different speaker types and room layouts.

Multiple Input Options for Flexible Source Compatibility
In addition to Dante inputs, the DSP100-1-CV-D offers two balanced and two unbalanced RCA analog inputs, allowing compatibility with a wide range of audio sources. Whether you’re integrating with paging systems, background music players, or AV controllers, this amplifier offers the flexibility to handle analog and digital signals seamlessly within the same zone.

USB Configuration for Fast Setup and Replication
Setup is quick and efficient via the onboard USB port, which allows direct connection to configuration software. This feature streamlines programming for large-scale or multi-zone installations and makes it easy to copy settings across multiple units. USB-based configuration also simplifies future updates or changes without needing network access.

Remote Volume Control for Seamless User Adjustment
The DSP100-1-CV-D supports external remote volume control, enabling convenient adjustments from wall plates or control interfaces. This allows end users to manage audio levels without accessing rack-mounted gear or software, making it ideal for public spaces, meeting rooms, or hospitality environments where volume needs to be adjusted on the fly.

Built for Quiet Operation and Tight Spaces
The convection-cooled design ensures silent operation with no moving parts, making this amplifier perfect for environments where noise is a concern. Its 1/2 rack-size enclosure allows for easy mounting in compact AV racks, podiums, or above-ceiling plenum spaces, all while delivering full 100W output in demanding commercial installations.
