Soundcraft E947.300000 Vi1 32 I/O Digital Mixing System

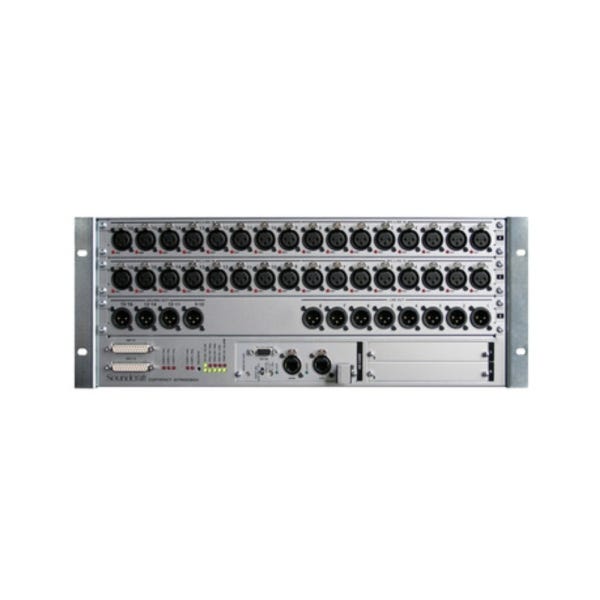

Discover High-Density I/O Connectivity with Soundcraft Compact Stagebox
The Soundcraft Compact Stagebox redefines efficient use of rack space, offering an extensive array of I/O connections within just 4U. Ideal for anyone requiring a high-density setup, this modular unit can be customized yet typically arrives with 32 mic/line inputs, 8 line outputs, and 8 channels of AES/EBU outputs, accompanied by two expansion slots for Studer D21m I/O cards which accommodate a vast range of digital formats.

Customizable I/O for Ultimate Flexibility
Adaptability is key with the Compact Stagebox. Beyond the standard configuration, you can opt to replace the output module with an additional 16 mic/line input XLR module, boosting the total to 48 inputs. Outputs remain accessible via D-Type connectors using D21m cards in the expansion slots, ensuring versatility regardless of your setup requirements.

Seamless Integration with Soundcraft and Studer Systems
Utilizing the same mic/line I/O modules as the Soundcraft Vi1 console, the Compact Stagebox allows for interchangeable modules between the console and stagebox. This flexibility is perfect for custom configuration needs, whether modifying the Vi1 console or adjusting the stagebox setup for varying I/O demands.

Robust Connectivity Options and Expansion Capabilities
Connectivity is streamlined through either Cat-5 or Optical-fibre MADI, mirroring the setup of the larger 64 Mic/line Vi6 Stagebox with redundant MADI cable functionality. The stagebox is not only expandable to handle up to 96 mic/line analogue inputs from remote stageboxes but also supports cost-effective remote I/O capabilities for Vi1 and Si range consoles through optional MADI interface cards.

Built to Last with Advanced Features
The Compact Stagebox doesn’t just perform well—it's built to last with twin redundant power supplies, thermostatically-controlled fan cooling, and full LED status monitoring. An 8-channel GPIO interface further enhances its utility, making it an indispensable tool for existing Vi Series console owners looking to expand their input capabilities or integrate with Si range consoles for remote I/O solutions.
