DMC7 Dynamic Capsule, Aluminum Voice Coil, Neodymium Magnet, Lockable Silent Reed Switch, Vacuumized Switch Contacts, Recessed Lock Position, Supercardioid Polar Pattern, 40 Hz – 19 kHz Frequency Response, Patented Internal Shockmount, Internal Windscreen, Die-Cast Zinc Chassis, 3-Pin Male XLR Output, Gold-Plated Contacts, 10.6 oz Weight, Matte Black Finish
This product includes a 1 year SE Electronics manufacturer's warranty that can be extended to 3 years upon registering the products. Coverage: Se Electronics will, at its option, repair or replace the product covered by this warranty if it becomes defective, malfunctions or otherwise fails to conform with this warranty under normal use and service during the term of this warranty, without charge for labor or materials.

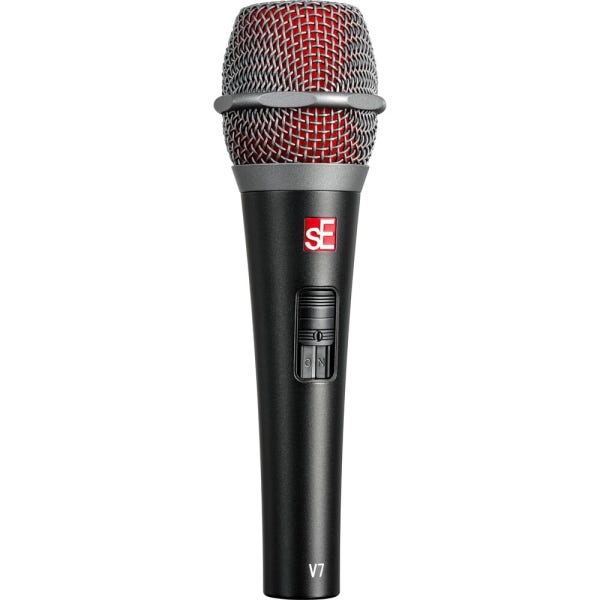

The V7 Switch is the V7 platform built for talent who need a clean way to mute between phrases — live podcast hosts, on-air radio broadcasters, worship pastors, event emcees, and theatrical performers who pass the mic mid-program. At its heart sits sE Electronics' custom DMC7 dynamic capsule with an aluminum voice coil and a neodymium magnet circuit — a moving element light enough to capture vocal detail legacy stage dynamics miss, with sensitivity high enough to drive any preamp without inline boosters. The headline addition is a lockable on/off switch built around a silent reed element with vacuumized contacts. The result is a mute that delivers a clean cut between phrases with no click, no pop, and no accidental bump.
Most handheld microphones with switches use mechanical sliders or rocker contacts — they work, but they pass an audible click through the preamp every time the contacts open or close. The V7 Switch instead uses a proven reed element: a sealed glass envelope holding two reed contacts that close magnetically when the slider passes by. Because the reed contacts make and break inside a vacuumized envelope, the switching event itself is electrically silent — there is no contact-bounce transient and no oxidation arc to amplify through the PA. The switch position is also recessed into the chassis and lockable in both directions, so a mic dropped in a clip, set down on a podium, or rolled across a road case cannot accidentally engage the mute or wake from it. For broadcasters and worship pastors who need the certainty that the mic is on when they speak and silent when they step away, the recessed lock is the killer feature.
The V7 Switch keeps the V7 family's tight supercardioid polar pattern — the reason every V7 variant earns its place on stages with hot monitors and aggressive wedge mixes. The pattern rejects off-axis sound — drum bleed, monitor wash, neighboring vocalists — far more aggressively than cardioid handhelds, which is exactly what gives the V7 platform its reputation for massive gain before feedback. Vocalists who fight feedback every night with legacy dynamics regularly report being able to ride a hotter monitor mix with the V7 Switch in front of them. Off-axis rejection is also why the mic translates so well to broadcast and house-of-worship work — room reflections and audience noise stay out of the capture, and the supercardioid null behind the capsule sits exactly where stage wedges typically point.
The V7 Switch's frequency response extends from 40 Hz at the low end to 19 kHz at the top — wider than virtually any wired stage dynamic in its tier. That extra openness on the top end is what makes the V7 read clearly even when sitting on top of a loud band mix or competing with audience noise on a house-of-worship floor. The combined effect of the DMC7 capsule's aluminum voice coil and the neodymium magnet circuit is articulate vocal capture that resembles a studio condenser more than a legacy stage dynamic — without sacrificing the bulletproof reliability of a wired dynamic capsule. Spec-sheet buyers comparing the V7 Switch against the standard handheld dynamic tier will notice the response extension on both ends.
The V7 Switch's chassis is the same die-cast zinc alloy body and stainless spring-steel mesh grille that defines the rest of the V7 family. It absorbs the drops, road cases, and quick-cable-pulls of a touring or rotating-stage life, with the recessed switch position adding mechanical protection for the one moving electrical component. The matte black finish presents cleanly under stage lighting and on camera, and the gold-plated 3-pin XLR contacts at the base deliver a corrosion-free signal handoff to any standard mic preamp. The microphone weighs 10.6 oz with a 7.2 in length and 2.1 in capsule diameter — handheld dimensions that match the muscle memory of legacy stage handhelds.
The V7 Switch addresses a specific gap the V7 Black and V7 colored finishes do not — the lockable silent mute for talent who step on and off mic mid-program. Live podcast hosts who need a cough button. On-air radio broadcasters who go silent between breaks. Worship pastors who step off-mic during prayer or congregation interaction. Theatrical and corporate event MCs who pass the mic between speakers. First-timer buyers get a wired vocal mic with the openness of a studio capsule and a switch that doesn't betray them. Upgraders trading in a legacy dynamic with a clicky slider switch get a clean silent reed mute that holds up to nightly use. Comparison shoppers get a 40 Hz – 19 kHz response, supercardioid rejection, and a recessed lockable switch that other handheld dynamics in this tier do not pair together in one mic.
| MPN | V7 Switch |
|---|---|
| Color | Black |
| UPC / EAN | 819032011317 |
| Brand | Se Electronics |
| Product Condition | New |
| Availability | In Stock |
| Type | Handheld Supercardioid Dynamic Vocal Microphone with Lockable On/Off Switch |
| Polar Pattern | Supercardioid |
| Frequency Response | 40 Hz – 19 kHz |
| Sensitivity | 2.0 mV/Pa (-54 dB) |
| Output Impedance | 300 Ω |
| Connector | 3-pin Male XLR (Gold-Plated) |
| Capsule | Custom DMC7 dynamic w/ aluminum voice coil |
| Magnet | Neodymium |
| Switch | Lockable on/off reed element — silent, click-free operation |
| Switch Contacts | Vacuumized for reliability under heavy live use |
| Shockmount | Integrated patented internal capsule shockmount |
| Windscreen | Integrated internal windscreen |
| Body | All-metal die-cast zinc alloy with stainless steel mesh grille |
| Diameter | 2.1 in (54 mm) |
| Length | 7.2 in (184 mm) |
| Weight | 10.6 oz (300 g) |
| Finish | Matte Black |
| XLR Contacts | Gold-plated |
| In the Box | V7 Switch Microphone | Mic Clip | 5/8-27 to 3/8 Adapter | Internal Windscreen | Padded Carrying Pouch |
