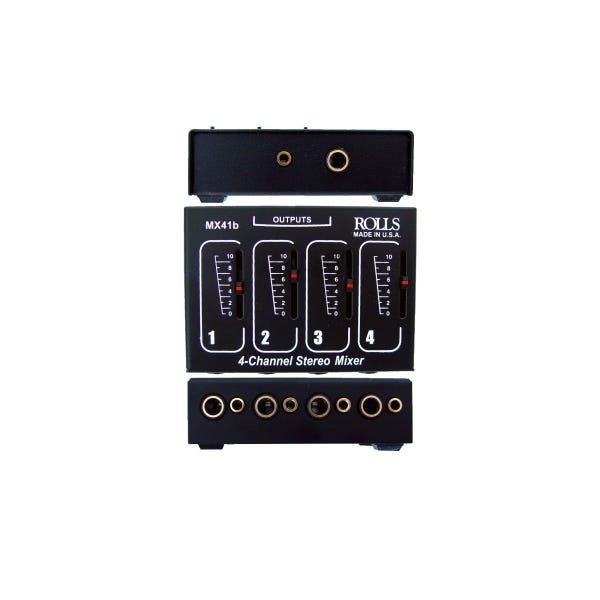

Rolls MX41b Mini-Mix 4-Channel Passive Stereo Mixer

Rolls MX41b Mini-Mix: A Passive Four-Channel Stereo Mixer That Needs No Power

The Rolls MX41b Mini-Mix is a fully passive four-channel stereo mixer that combines up to four line-level sources into one stereo output using nothing but its own faders, with no power, batteries, or adapter required. It exists for the situation where you need to sum a few stereo sources and there is simply no outlet or free power jack in reach. Four channels each offer 1/4-inch and 3.5mm inputs, and the stereo output appears on both 1/4-inch TRS and 3.5mm, so it drops into almost any consumer or pro chain. Because the design is passive and reversible, the same box runs backward as a one-in, four-out stereo distribution splitter. In a pocket-size aluminum chassis, the MX41b is the utility mixer that works anywhere, including where power does not.

Fully Passive Operation With No Power Required

The MX41b is a completely passive mixer, meaning it sums signals through resistive faders alone and needs no power source of any kind. Passive summing works by blending sources through a network of level controls rather than active circuitry, which is why the box never needs a battery or wall wart. The tradeoff is a small, predictable level drop, up to about -12 dB at maximum settings, that a downstream amp or gain stage easily makes up. What you gain is total reliability and instant setup: there is no supply to fail and nothing to plug in. For a field kit or a rack corner where outlets are scarce, the no-power design is the whole point.

Four Stereo Channels With 1/4-inch and 3.5mm I/O

Each of the four channels accepts a stereo source on both 1/4-inch and 3.5mm connectors, and the mixed output is available on 1/4-inch TRS and 3.5mm as well. That dual-connector set means the MX41b mates directly with everything from a pro line output to a phone or laptop headphone jack without adapters. Blending four stereo sources into one output covers the everyday job of merging media players, a click source, and a backing track. Because both connector types appear on every channel, you rarely have to hunt for the right cable. For a utility box that has to fit into whatever gear is on hand, that flexible I/O is what keeps it useful.

Per-Channel 100K Faders and Matched Impedances

The MX41b uses per-channel 100K ohm level faders with input impedance from 10K to 47K ohms and output impedance from 2.5K to 10K ohms. Those figures mean each channel sits comfortably behind consumer and pro line sources without loading them down or changing their tone. The faders let you ride each source independently, setting a permanent blend that holds without power. Matching impedances through the chain keeps levels predictable from source to output. For anyone summing line-level gear, the MX41b's straightforward electrical design is exactly what a passive utility mixer should be.

Reversible for One-to-Four Stereo Distribution

Because it is passive, the MX41b runs in reverse: feed one stereo source into the output and it distributes to all four input jacks as a stereo splitter. A distribution splitter is handy when you need to send one program feed to several destinations, such as multiple recorders or monitor points. The same four faders then act as trims on each split feed, so you can balance the outputs. This two-way capability effectively makes the box two tools in one small chassis. For a portable rig that sometimes mixes and sometimes splits, the reversible design doubles what the MX41b can do.

Pocket-Size Utility for Field and Studio

In a 3.6 x 2.7 x 1.42 inch aluminum chassis weighing about a pound, the MX41b is small enough to live in a gig bag, a drawer, or a rack corner. Its core jobs are combining several headphone or line sources, submixing where no power is available, and splitting one source to several destinations. The metal shell stands up to the knocks of field use rather than flexing like a plastic box. Because it needs nothing to run, it is always ready the moment you pull it out. For DJs, videographers, and studio techs who need dependable stereo summing on the go, the MX41b is the pocket utility that never lets power get in the way.
