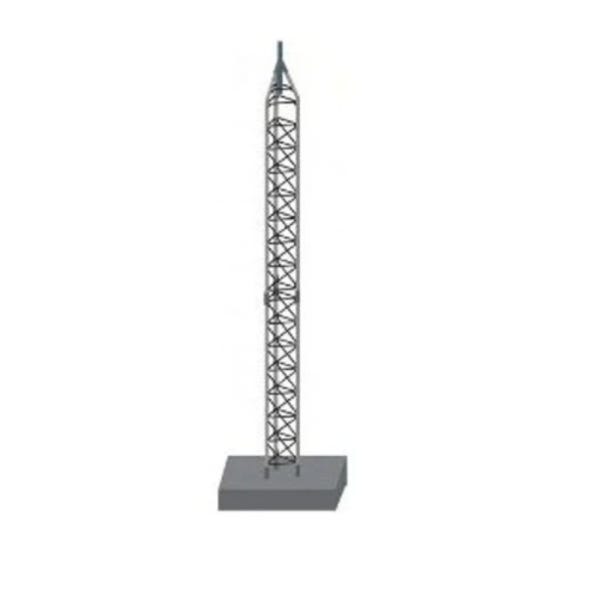

Rohn 45GSR130R040 40FT Complete Guyed Tower System

Built for Extreme Conditions and Mission-Critical Stability
The Rohn 45GSR130R040 is a 40-foot complete guyed tower system engineered for environments where structural integrity is non-negotiable. Designed to withstand 130 MPH 3-second gust wind speeds, this tower assembly is part of the rugged 45GSR series—a heavy-duty upgrade from the standard 45G that incorporates solid round steel legs and heavy flange connections. If your project requires a broadcast-quality, reliable, and long-lasting support structure, this tower delivers exactly that.

Heavier Steel Construction for Critical Applications
This tower section features solid round steel legs, a substantial enhancement over tubular leg designs. With stronger 4-bolt flange joints, the 45GSR130R040 tower is ideal for high-load applications including wireless broadband, public safety, or large antenna arrays. Whether you’re deploying communications infrastructure or supporting broadcast gear, the structural enhancements of the GSR series provide peace of mind in demanding installs.

Compact Height with High Wind-Load Performance
Standing at 40 feet, this model offers an accessible tower height for rooftop installations, mid-size field deployments, or rapid-build comms infrastructure. Despite its compact size, it supports up to 130 MPH wind speeds (3-second gusts) with properly engineered guying and loading configurations. This allows engineers to meet building code requirements without oversizing or over-engineering the entire system.

Flexible Base Options for Streamlined Deployment
Like other towers in the 45GSR series, the 45GSR130R040 supports multiple base configuration options, including base plates with anchor bolts, hinged bases, or concrete-cast direct embeds. This adaptability allows project leads to tailor the foundation for soil conditions, rooftop installs, or existing site prep. The modular design also makes it easier to extend, transport, or service.

Designed for Superior Joint Strength and Corrosion Protection
Double-bolted joints and continuous zig-zag cross bracing ensure minimal sway and reliable load transfer under stress. Each section is completely hot-dip galvanized after fabrication, protecting all welds and surfaces from corrosion—even in coastal or high-humidity environments. The result is a tower system engineered for multi-decade durability and long-term ROI.

Compatible with a Wide Array of Mounting Gear
This tower is part of Rohn’s 45G series, meaning it’s compatible with many industry-standard accessories including side arms, top sections, standoffs, and guy anchor kits. Whether you’re installing microwave dishes, broadcast antennas, or surveillance systems, the 45GSR130R040 can accommodate diverse loads with its heavy-duty frame and pattern-compatible geometry.
