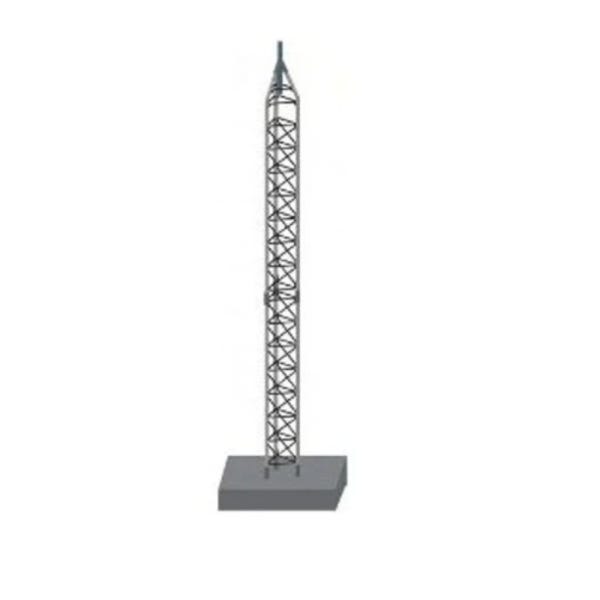

Rohn 45GSR110R110 Complete Tower Assembly

Heavy-Duty Tower Solution for Demanding Installations
The Rohn 45GSR110R110 Complete Tower is a 110-foot guyed tower built to handle extreme loads and high-wind conditions. Rated to withstand 110 MPH 3-second gusts with a 43 square foot antenna load, this tower is engineered for applications where safety, durability, and structural integrity are essential. Ideal for broadcast, telecommunications, and industrial operations, this tower delivers the performance you need in mission-critical installations.

Reinforced Structure with Solid Round Steel Legs
Unlike standard 45G towers, the 45GSR series uses solid round steel legs, offering significantly higher load capacity and improved resistance to bending and fatigue. These solid-rod legs provide the added strength required for environments with heavy antennas, aggressive wind zones, or long-term use in harsh weather. If you're building infrastructure that demands superior support, the 45GSR110R110 provides the backbone.

Flange Connections for Increased Rigidity
Each 10-foot section of the tower features a heavy-duty four-bolt flange system that creates a highly secure connection point between segments. This type of flange joint ensures better alignment and eliminates flexing at the seams, creating a more stable tower structure. It’s an ideal design for guyed towers where wind resistance and structural stability are top priorities.

Flexible Base Mounting Options
To suit different installation sites and requirements, this tower allows for multiple base options including a base plate with anchor bolts, a hinged base for easier installation, or a base cast in concrete. These mounting options provide adaptability whether you're installing in rocky terrain, open fields, or areas with limited accessibility.

Galvanized Finish for Long-Term Corrosion Resistance
Every component of the tower is hot-dip galvanized after fabrication. This process ensures a uniform coating that guards against rust and corrosion over time, making this tower especially reliable in coastal, industrial, or high-humidity environments. With galvanized protection, your investment remains structurally sound and maintenance-light for decades.

Ideal for High Wind Zones and Large Antenna Loads
With its 110-foot height and 43 square foot antenna capacity at 110 MPH wind speed, this tower meets the needs of a wide range of critical communication systems. It’s suitable for microwave, broadcast, two-way radio, cellular, and data transmission antennas, particularly in areas that require a higher load capacity than traditional towers offer.
