RME Optical MADI SFP Module, Multi-Mode, Up to 64 Channels Over Fiber

RME Multi-Mode MADI SFP Module: Optical MADI Over Fiber

The RME MADI SFP Module (Multi-Mode) is an optical SFP transceiver that adds fiber-based MADI to compatible RME devices such as the 12Mic, AVB Tool, and M-1610 Pro. It carries up to 64 audio channels of MADI over multimode fiber, reaching up to about 2 kilometers on OM-1 cable. The module is hot-pluggable, so it inserts and removes while the host device stays powered, and it ships with an LC-to-SC adapter cable and coupler for connecting to common SC-based MADI gear. For extending MADI optically between rooms or buildings, this is the drop-in fiber solution.

How the SFP Module Adds Optical MADI

SFP (Small Form-factor Pluggable) is an industry-standard modular transceiver slot, and an SFP module is the small hot-swappable unit that converts the host's electrical signal into light for transmission over fiber and back again. This module handles MADI — up to 64 channels of digital audio on a single link — turning an SFP-equipped RME device's port into an optical MADI connection. Because the transceiver is a module rather than a fixed port, the host device can be optical or coaxial simply by choosing the right insert. That modularity is what makes RME's SFP-based MADI gear so flexible.

Multi-Mode Fiber and Up to ~2 km Range

This is the Multi-Mode (marked MM) variant, designed for multimode fiber, which uses a wider core that carries light in multiple paths and is the most common fiber type in audio MADI systems. On OM-1 multimode fiber it supports runs up to about 2 kilometers, far beyond the reach of coaxial MADI, while fiber's immunity to electrical interference and ground loops keeps the signal clean over that distance. Fiber also provides galvanic isolation between devices, which is valuable across separate power domains. For most facility and live optical MADI needs, multimode is the right choice.

Hot-Pluggable with Included SC Adapter

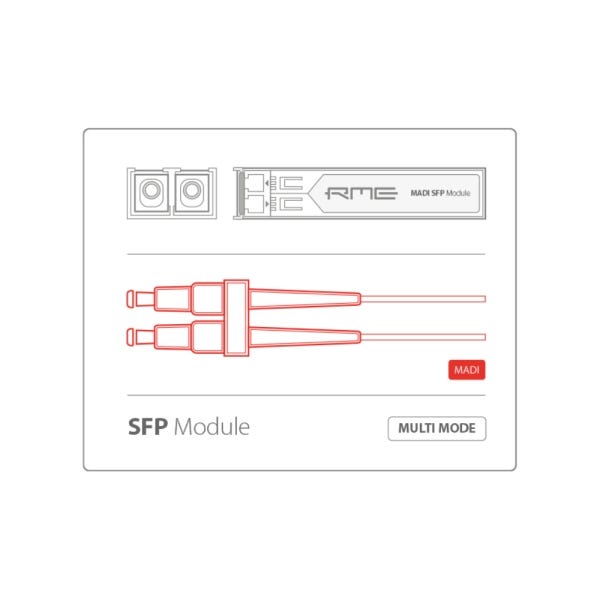

The module is hot-pluggable, meaning you can insert or remove it while the RME MADI device is powered on, so adding or servicing an optical link never requires shutting the system down. It uses an LC fiber connector and ships with an LC-to-SC adapter cable plus an SC-SC coupler, so it connects directly to the SC-terminated fiber common on many MADI devices. This included adapter removes the guesswork of matching connector types. The result is a fast, low-risk way to bring fiber MADI into an existing rig.

For Extending MADI Between Rooms and Buildings

Use the multi-mode MADI SFP to extend MADI over fiber between rooms or buildings, to add optical MADI to a 12Mic, AVB Tool, or M-1610 Pro, and for long optical runs in install and live systems. It suits facilities that need to move 64 channels across distances coaxial cable cannot span, or that need electrical isolation between locations. Pair it with a matching optical port at the far end for a complete link. Where MADI needs to travel far and stay clean, this module is the connection.
