RME Balanced Analog Breakout Cable, 15-Pin D-Sub to 4x XLR (HDSP)

RME Balanced Analog Breakout Cable: XLR Connectivity for HDSP 9632 and HDSPe AIO

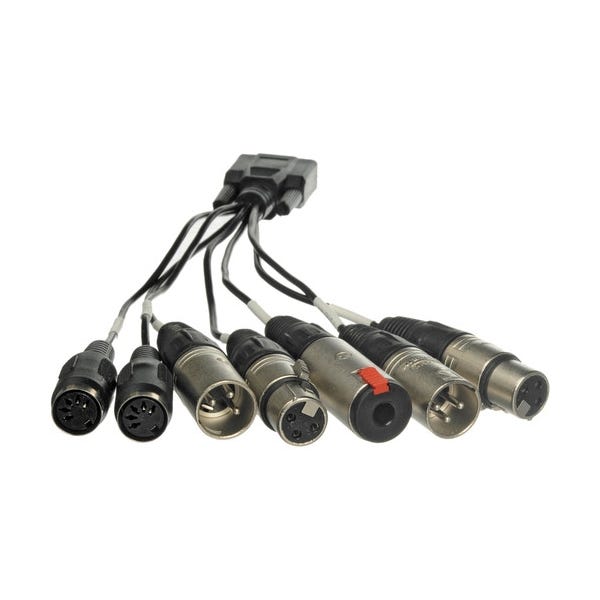

The RME Balanced Analog Breakout Cable is a dedicated 15-pin D-sub to 4x XLR breakout for RME's HDSP 9632 and HDSPe AIO Hammerfall cards. It also carries two MIDI connections and a headphone breakout on the same harness, turning the card's compact multi-pin connector into standard studio jacks. For the engineer who has installed one of these PCI or PCIe cards and needs to connect balanced gear, this is the cable that makes the card usable. It is the correct factory accessory rather than an adapter to be guessed at.

From One D-Sub to Four Balanced XLR Connections

RME's Hammerfall cards concentrate their analog and MIDI I/O onto a single 15-pin D-sub connector to save bracket space, and this cable fans that out to four balanced XLR connectors plus MIDI and headphone breakouts. A breakout cable like this maps each pin of the dense connector to the right individual jack, so nothing has to be re-wired by hand. Because the four analog connections are XLR, they carry the card's balanced outputs and inputs on the standard professional connector. That makes the card immediately compatible with balanced monitors, preamps, and outboard gear.

Why Balanced XLR Matters for Analog I/O

A balanced connection carries the audio on two conductors of opposite polarity, letting the receiving device cancel any noise the cable picks up along the way. That noise rejection is why balanced XLR is the professional standard, especially over longer cable runs in a studio. Using this balanced breakout keeps the HDSP card's analog path quiet and hum-free when connected to balanced equipment. For anyone routing the card to professional monitors or converters, the balanced XLR format preserves the signal integrity the card is capable of.

The Correct Cable for a Clean Install

Using RME's own breakout cable guarantees the pinout matches the HDSP 9632 or HDSPe AIO exactly, so each channel and MIDI port appears where it should with no troubleshooting. A mismatched third-party harness can swap channels, break MIDI, or miswire the balanced pairs, undoing the card's quality. This cable is the accessory the cards were designed to be used with, delivering their analog, MIDI, and headphone connections correctly in one harness. For a clean, reliable installation, it is the intended companion to the card.
