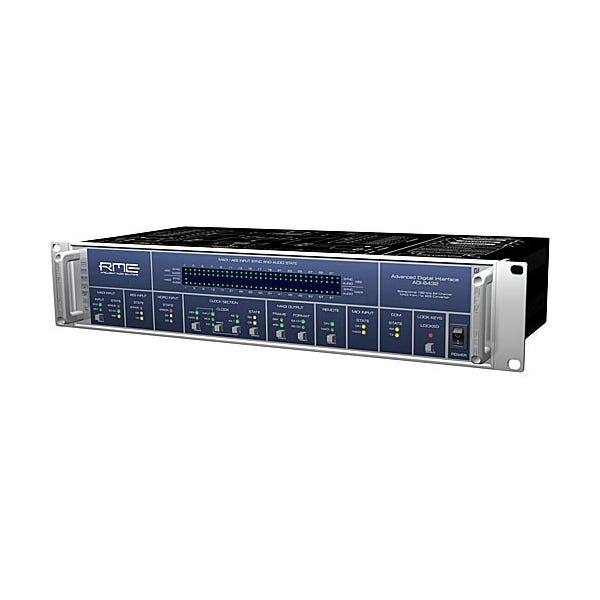

RME ADI6432 64-Channel, 24-Bit/192kHz MADI / AES Format Converter

RME ADI-6432: Advanced 64-Channel MADI/AES Format Conversion
Introducing the RME ADI-6432, a professional 64-channel format converter that efficiently manages MADI to AES conversions and vice versa. Designed for high-density audio applications, this unit is perfect for large-scale digital multicore setups or as a robust AES/EBU front end for the Hammerfall DSP MADI PCI card. Whether you're running a live concert setup or a complex studio configuration, the ADI-6432 offers reliable, high-fidelity audio conversion up to 192kHz, making it a top choice for audio professionals.

Superior Audio Quality Across All Channels
The ADI-6432 supports 64 channels of 24-bit audio at sampling frequencies up to 48kHz, 32 channels up to 96kHz, and 16 channels at the maximum rate of 192kHz. Utilizing either coaxial (BNC) or optical network cables, all channels are seamlessly transferred across a single cable, ensuring a clean and uncluttered setup. This device also features eight 25-pin D-sub connectors for AES/EBU outputs, providing ample connectivity for even the most demanding audio tasks.

Precision Clocking with RME’s SteadyClock
RME's proprietary SteadyClock technology ensures extremely low jitter, crucial for maintaining pristine sound quality in digital audio systems. The Intelligent Clock Control (ICC) retains the last valid sample frequency in case of loss of the input signal, ensuring continuous reliable operation. Nearly one hundred LEDs on the front panel provide precise status feedback, allowing for immediate error detection and correction.

Advanced Synchronization and Integration Features
Equipped with RME's SyncAlign and SyncCheck technologies, the ADI-6432 ensures perfect synchronization and clear error detection across digital signals. Its capabilities extend to complex setups where multiple units can be stacked and operated in sample-aligned fashion using a word clock. This makes the ADI-6432 ideal for setups requiring tight sync across multiple digital audio streams.

Versatile and User-Friendly Design
The ADI-6432 is not just powerful but also exceptionally versatile. It can merge two MADI streams from separate sources, sending them on through a single MADI cable, which is particularly useful in scenarios where sources do not utilize their full channel capacity. For environments such as broadcast trucks or live event stages, where redundancy is critical, the ADI-6432 offers automatic input selection between optical and coaxial inputs to ensure continuous operation.
