Radial products purchased by an authorized Radial Engineering reseller include a 3 year, transferable warranty.
Features:
- Phase-align two signals for exceptional clarity
- 100% analog, Class-A audio circuit
- Variable phase shift for precise alignment
- Low-pass filter lets you focus the effect
Align your tracks for improved sound

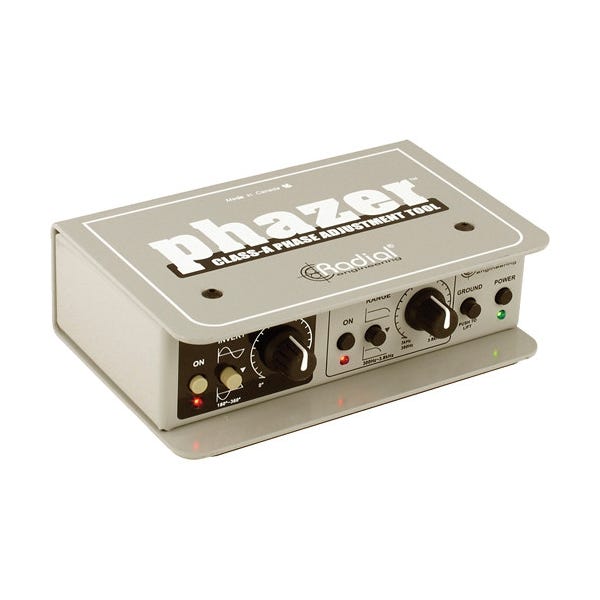

The Phazer is a unique tool that sums two line-level signals together using class-A analog circuitry, providing the ability to quickly and accurately phase-align any tracks for improved clarity and tone. Once in phase, the results are impressive: On electric guitar; you can combine the direct feed of an amp with a room mic to create fat rich tones.
On a kick drum, combine the attack from a batter head mic with the body captured by the outer shell mic, or the top and bottom mic's on a snare drum. With acoustic instruments, combine a close 'spot' mic with a room mic to capture textures like never before.
MPN | Phazer |
---|---|
UPC / EAN | 676101037827 |
Brand | Radial Engineering |
Product Condition | New |
Availability | In Stock |
Specifications | ||
---|---|---|
Audio circuit type: | Active analog phase adustment | |
Number of channels: | Mono | |
Frequency response: | 20Hz ~ 20KHz (± 0.5dB) | |
Dynamic range: | 94dB | |
Input Impedance: | 10k Ohms, balanced | |
Output Impedance: | 2k Ohms, balanced | |
Maximum Input: | +11.5dBu @ 1kHz, 1% THD+N | |
Features | ||
Ground lift, LPF | ||
Input Connectors: | XLR input, ¼" TRS input | |
Output Connectors: | XLR output, ¼" TRS output | |
Extras: | Phase Reverse | |
General | ||
Construction: | 14-gauge steel | |
Size (L x W x D): | 4.5" x 2" x 6" (114 x 57 x 147mm) | |
Weight: | 2.8 lb (1.3kg) | |
Shipping size (L x W x D): | 4.75" x 2.5" x 10.75" (121 x 64 x 273mm) | |
Shipping weight: | 3.05 lb ( 1.4kg) | |
Power: | +15V DC/400mA power supply included | |
Conditions: | For use in dry locations only between 5°C and 40°C |
