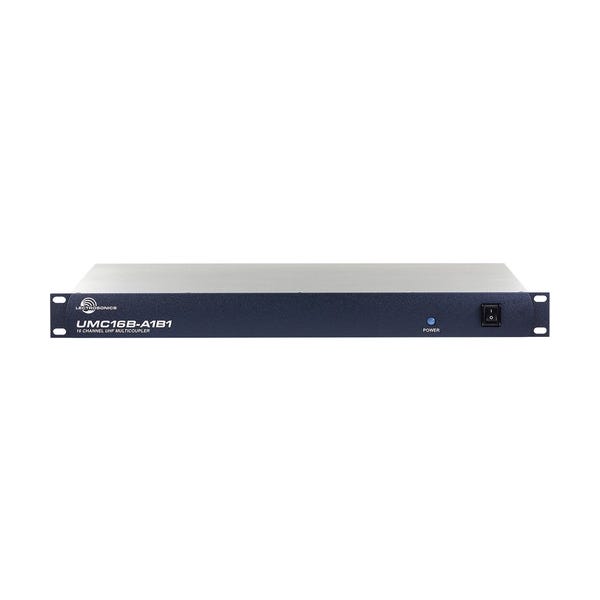

Lectrosonics UMC16B-A1B1 Wideband UHF Multicoupler (470 to 614 MHz)

Streamline Your Wireless Systems with the Lectrosonics UMC16B-A1B1
The Lectrosonics UMC16B-A1B1 Wideband UHF Multicoupler revolutionizes the management of multi-channel wireless systems by efficiently distributing signals from two antennas to eight diversity receivers. This powerful device minimizes the need for excessive cabling and antennas, enhancing setup efficiency and performance across venues and events.

Top-Notch Signal Quality with Advanced Filtering
This multicoupler combines sophisticated ceramic filtering and low-noise, high intercept point RF distribution technology to deliver exceptional performance and flexibility. Capable of supporting up to eight diversity receivers or 16 non-diversity receivers, it ensures outstanding signal quality across its wide 470 to 614 MHz passband.

Flexible Powering Options for Every Setup
Adaptability is key in professional audio equipment, and the UMC16B-A1B1 excels with multiple powering options. It can operate using an external 12 to 18 VDC supply for mobile applications or from a 90 to 240 VAC source for fixed installations, thanks to the regulated power supply included with the unit. A locking connector on the rear panel guarantees a secure power connection, crucial for reliable operation.

Enhanced Signal Integrity with High-Current Amplification
At the heart of the UMC16B-A1B1 is a high-current amplifier that processes incoming signals through a ceramic filter, blocking unwanted frequencies and amplifying the desired signals. This high IP3 amplifier is pivotal in minimizing intermodulation products, ensuring a clear and strong output ahead of the splitting process.

Efficient Distribution with Minimal Loss
Post-amplification, the signals are distributed to the output jacks using a precision-engineered Wilkinson strip line RF splitter. This design allows for maximum performance even if some outputs are left un-terminated, maintaining a stable signal level with minimal effect on other channels.

Robust Design for Professional Environments
Constructed to withstand the demands of professional use, the UMC16B-A1B1 is housed in a standard 19-inch rack mount assembly with rugged connectors. This robust build ensures it can handle the rigors of touring and permanent installations alike, providing reliability where it matters most.
