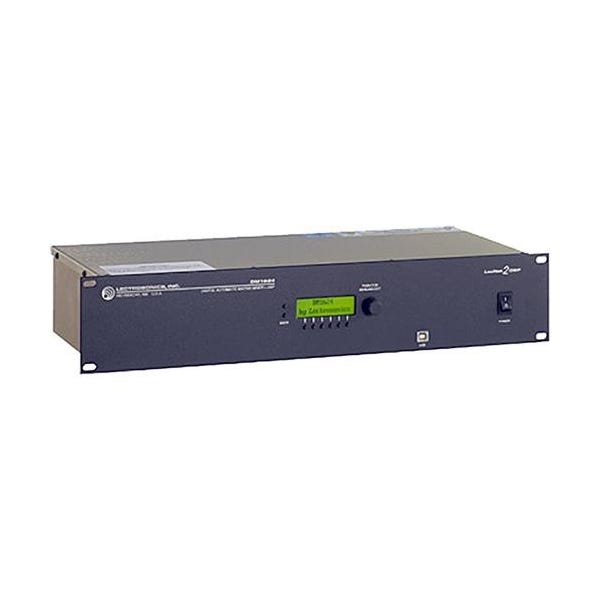

Lectrosonics DM1624F Digital Automatic Matrix Mixer (16 In / 24 Out)

Introducing the Lectrosonics DM1624F Digital Matrix Mixer
The Lectrosonics DM1624F Digital Automatic Matrix Mixer is a state-of-the-art audio management tool designed to meet the needs of complex audio environments. This mixer is perfectly suited for sound reinforcement and conferencing in diverse settings such as boardrooms, courtrooms, worship centers, and educational facilities. It combines robust digital signal processing (DSP) technology with high-speed, efficient operation, ensuring superior sound quality and reliable performance in demanding situations.

Optimal Design for Maximum Flexibility
The DM1624F features a comprehensive configuration of 16 microphone/line inputs and 24 outputs, supported by a fully programmable DSP-based crosspoint matrix. This advanced matrix allows for flexible routing, enabling any input to be directed to any or all outputs. This flexibility is essential for customized audio setups in multifunctional spaces, making it an ideal choice for professionals seeking a versatile audio solution.

Advanced Audio Processing Features
Each input on the DM1624F undergoes precise audio processing. Signals are enhanced through multiple DSP filters, an automatic digital feedback eliminator (ADFE), a compressor, and a digital delay, following initial A-D conversion. Adjustable gain settings ranging from -69 to +20 dB at each matrix crosspoint ensure tailored audio output for every scenario. The outputs are equally equipped with several processing stages, including DSP filters, compressors, and limiters to maintain audio integrity.

Sophisticated Mixing Capabilities
The mixer employs a proportional gain auto-mixing algorithm, known as AutoSkew™, which is patented and enhances the audio output by allowing individual input channels to contribute variably across different outputs. Each output also includes its own Number of Open Microphones (NOM) mixing bus, providing detailed control over the live mixing environment and ensuring balanced sound distribution.

Comprehensive Control and Connectivity
For ease of integration and control, the DM1624F is equipped with USB and RS-232 interfaces, along with digital I/O ports that facilitate daisy chaining and connection with other LecNet 2 devices. The mixer is compatible with AMX© and CRESTRON™ systems, offering flexible control options through both LecNet2 and third-party software. Continuous fan cooling ensures the system remains operational under continuous use without overheating.
