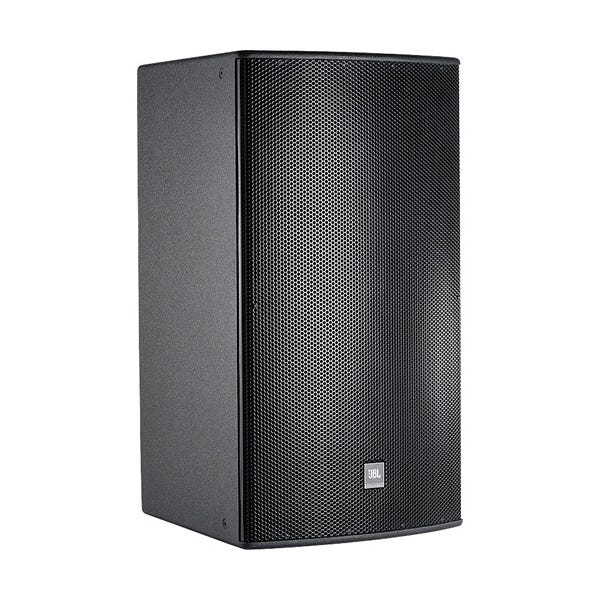

JBL AM7315/64 3-Way Full-Range Loudspeaker

Master Your Sound with JBL AM7315/64 Loudspeaker
The JBL AM7315/64 3-Way Loudspeaker System combines high-power output with lightweight agility, ideal for professional audio environments. Its configuration includes the innovative JBL Differential Drive technology, which features a 2265H 15" low-frequency driver with dual voice coil and dual magnetic gaps. Complemented by an 8" CMCD-82H cone midrange and a 2432H high-frequency driver, this system delivers full-range sound with precision and minimal distortion.

Unparalleled Sound Coverage
With its large format Progressive Transition (PT) waveguide, the AM7315/64 offers an expansive 60° x 40° sound coverage. The flexibility of a rotatable waveguide means this speaker can be positioned for optimal sound dispersion, whether mounted vertically or horizontally, adapting seamlessly to any venue's acoustic requirements.

Rugged Design for Every Venue
Built to endure the demands of intensive use, the AM7315/64 features a multi-ply Finnish birch enclosure with JBL's robust DuraFlex finish. The trapezoid design is reinforced and equipped with thirteen M10 threaded attachment points, supporting secure installation. The 14-gauge steel grille, lined with acoustically transparent black foam, ensures the drivers are well protected while maintaining a sleek, professional look.

Tailored for Professional Integration
To accommodate diverse sound engineering needs, the AM7315/64 includes high-slope passive networks that minimize band overlap and enhance the off-axis response. This ensures the loudspeaker integrates smoothly into complex audio setups, providing consistent, quality sound across different arrays and venues.

Switchable Configuration for Dynamic Sound Management
The versatility of the AM7315/64 is further enhanced by its ability to switch between bi-amp and tri-amp configurations. This feature allows audio professionals to customize the amplification based on the specific requirements of the event or installation, ensuring superior sound control and adaptability in any setting.
