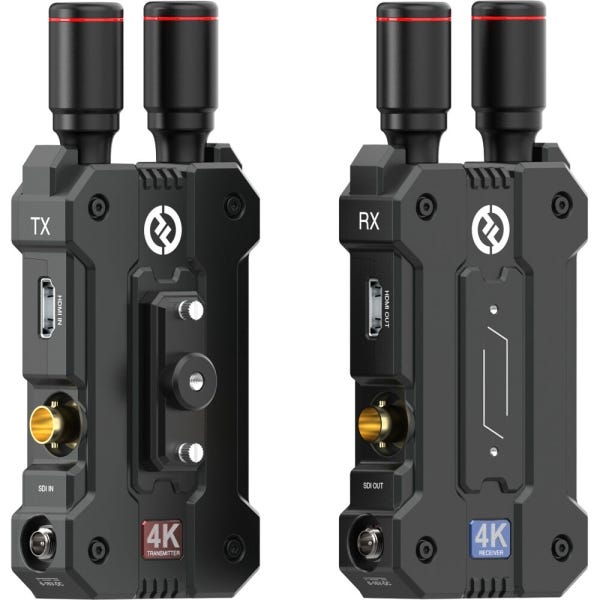

Hollyland HL-Mars 4K SDI/HDMI Wireless Video Transmission System
$699.00
Hollyland Mars 4K SDI/HDMI Wireless Video Transmission System
Availability:
In Stock
SKU
HL-Mars 4K
Features:
- 4K UHD video transmission up to 450ft (150m) line-of-sight range
- Ultra-low latency of 0.06s
- HDMI and SDI dual interfaces
- Supports broadcast and production frame rates (23.98/29.97/59.94fps)
- Flexible monitoring options: can be connected to up to 2 receivers simultaneously, or to up to 4 mobile devices via the Hollyview app
- Smart channel scan and selection
- Color touchscreen LCD
- Multiple power supply options: 6 to 16 VDC coax input, L-series/NP-F batteries, and USB Type-C chargers
The Hollyland Mars 4K is a wireless video transmission system that supports 4K UHD video transmission up to 450ft (150m) line-of-sight range with ultra-low latency of 0.06s. It features HDMI and SDI dual interfaces, supports broadcast and production frame rates, and offers flexible monitoring options.
The Hollyland Mars 4K is a versatile and powerful wireless video transmission system that is suitable for a wide range of applications, including live streaming, ENG/EFP, weddings, and corporate events.
Overall, the Hollyland Mars 4K is a high-quality wireless video transmission system that offers a good balance of features and performance. It is a good choice for professional videographers and photographers who need a reliable and versatile system for transmitting 4K video.
| Transmitter | Receiver | |
|---|---|---|
| Interface | Antenna (RP-SMA male) HDMI 1.4 b input (Type-A female) 3G-SDI input DC input (2.0mm core sccket) USB Type-C (USB 2.0 OTG) | Antenna (RP-SMA male) HDMI 1.4 b output (Type-A female) 3G-SDI output DC input (2.0mm core sccket) USB Type-C (USB 2.0 OTG) |
| Power supply | DC input: 6V–16V USB Type-C: 5V/2.5A (not supporting the QC and PD protocols) NP-F battery: 6.8V–8.4V | DC input: 6V–16V USB Type-C: 5V/2.5A (not supporting the QC and PD protocols) NP-F battery: 6.8V–8.4V |
| Power consumption | <8.5W (typical) | <5W (typical) |
| Weight | 223g (7.9oz) (excluding the antennas) | 223g (7.9oz) (excluding the antennas) |
| Dimension | (LxWxH): 115x65x32mm (4.5"x2.5"x1.3") | (LxWxH): 115x65x32mm (4.5"x2.5"x1.3") |
| Operating frequency | 5.1GHz–5.8GHz | 5.1GHz–5.8GHz |
| Modulation mode | 802.11n | 802.11n |
| TX power | 21dBm (max.) | 21dBm (max.) |
| RX sensitivity | N/A | –90dBm |
| Bit rate | 8Mbps–20Mbps | |
| Latency | 0.06s (test data when 1080p60 signals are transmitted in a laboratory) | |
| Range | 450ft (150m) (test data in an open, interference-free outdoor environment) | |
| Bandwidth | 20MHz | |
| Audio format | 2 audio channels for the 3G-SDI and 8 audio channels for the HDMI 1.4b | |
| Operating temperature | –10℃ to 60℃ | |
| Storage temperature | –40℃ to 60℃ | |
| ESD protection | Contact discharge: ±6kV; air discharge: ±8kV (test data) | |
| HDMI Input Format | HDMI Output Format | SDI Output Format |
| 720p50/59.94/60 | 720p50/60 | 720p50/60 |
| 1080i50/59.94/60 | 1080i50/60 | 1080i50/60 |
| 1080p23.98/24/25/29.97/30 | 1080p24/25/30 | 1080p24/25/30 |
| 1080p50/59.94/60 | 1080p50/60 | 1080p50/60 |
| 3840*2160 p24/25/30 | 3840*2160 p24/25/30 | 1080p24/25/30 |
| SDI Input Format | HDMI Output Format | SDI Output Format |
| 1080p50/59.94/60 (Level A) | 1080p50/59.94/60 | 1080p50/59.94/60 (Level A) |
| 1080p50/59.94/60 (Level B) | ||
| 1080i50/59.94/60 | 1080i50/59.94/60 | 1080i50/59.94/60 |
| 1080p23.98/24/25/29.97/30 | 1080p23.98/24/25/29.97/30 | 1080p23.98/24/25/29.97/30 |
| 1080psf23.98/24 | 1080p23.98/24 | 1080p23.98/24 |
| 1080psf25/29.97/30 | 1080i50/59.94/60 | 1080i50/59.94/60 |
| 720p50/59.94/60 | 720p50/59.94/60 | 720p50/59.94/60 |
| MPN | HL-Mars 4K |
|---|---|
| UPC / EAN | 191460002816 |
| Brand | Hollyland |
| Product Condition | New |
| Availability | In Stock |
| Condition | New |
