Henry Engineering LC LOGICONVERTER Control Logic Interface

Bridge the Gap with LogiConverter
Introducing the Henry Engineering LC LOGICONVERTER, a versatile control logic interface designed to seamlessly bridge the incompatibility between different audio and video equipment remote control circuits. This innovative device is the key to unified and efficient equipment management, making it an essential tool for any professional AV setup.

Advanced Control at Your Fingertips
The LOGICONVERTER boasts 4 opto-isolated inputs that precisely control 4 isolated relay outputs. This dynamic system is fully programmable, offering latched or momentary outputs from continuous or momentary inputs, with up to 24 possible combinations. Whether you need single or dual "flip-flop" outputs from a single input, or wish to latch and reset an output with two inputs, LOGICONVERTER has you covered.

User-Friendly Operation

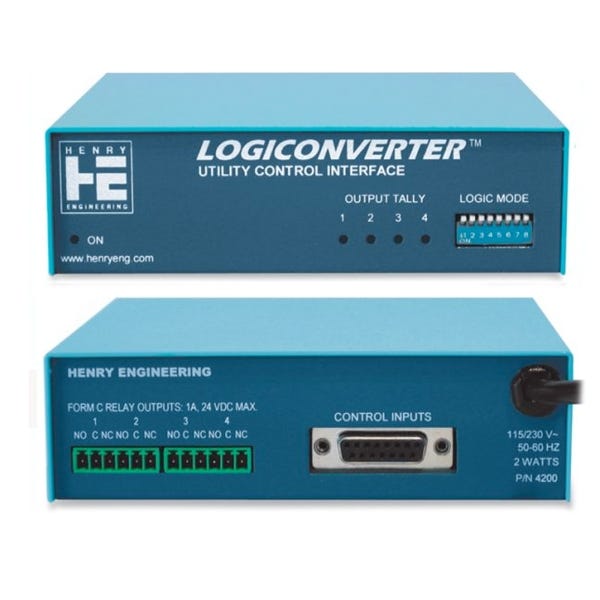

Ease of use is at the heart of the LOGICONVERTER's design. Logic modes can be effortlessly selected via front-panel switches, while LEDs provide instant feedback on the output status of the four logic channels. This intuitive interface ensures smooth operation and quick adjustments on the fly.

Flexible Connectivity for Every Scenario
LOGICONVERTER accommodates a wide range of input signals, accepting any DC voltage from 5-24 VDC, TTL or CMOS logic outputs, open collectors, or contact closures. Inputs are facilitated through a 15-pin D connector, and relay outputs are managed via plug-in euroblock connectors, offering flexibility for various installation needs.

Versatile Mounting Options
Designed for adaptability, the LOGICONVERTER can be integrated into any space. At 1/3 rack width, it can be mounted in an optional rack shelf or wall-mounted with optional wall/cabinet mounting brackets. Its compact size and mounting versatility make it ideal for any studio, control room, or mobile setup.
