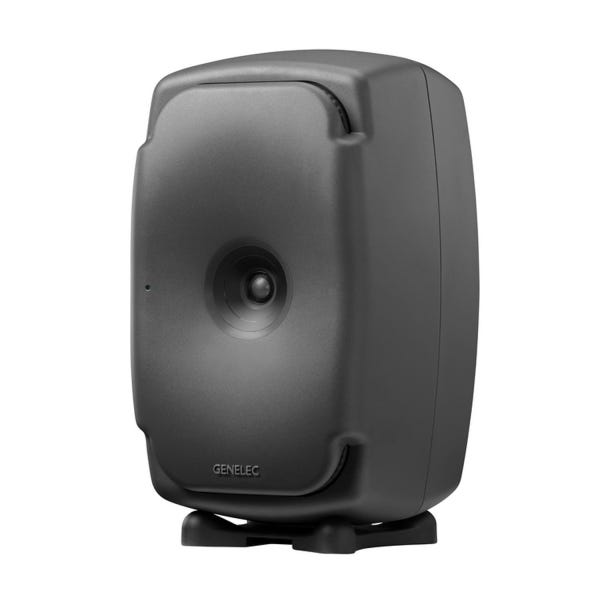

Genelec 8361AP SAM Studio Monitor (Producer Finish)

High-Resolution Studio Monitoring with Coaxial Precision
The Genelec 8361AP is a powerful three-way point source monitor designed for professional studio applications requiring accurate imaging, extended low-frequency response, and advanced room calibration tools. Featuring Genelec’s Smart Active Monitor (SAM) technology and a Minimum Diffraction Coaxial (MDC) driver, this monitor is tailored for nearfield to midfield listening in high-end music production, mixing, mastering, and immersive audio workflows. Styled in a Producer finish, the 8361AP integrates seamlessly into any modern control room while delivering reliable, reference-grade performance.

True Point Source Performance with MDC Coaxial Design
The 8361AP centers around Genelec’s MDC coaxial driver, which combines a 5" midrange and a 1" tweeter into a single coaxial structure. This design aligns the acoustic centers of the drivers, resulting in exceptional phase coherence and pinpoint imaging across the listening field. Unlike conventional multi-way monitors, the 8361AP eliminates off-axis coloration and maintains tonal consistency across different positions, ensuring precise spatial detail in stereo and multichannel environments.

Dual Acoustically Concealed Woofers for Deep Low-End
Two 10.4" woofers are integrated into the enclosure behind Genelec’s Directivity Control Waveguide, extending the system’s low-frequency response down to 36 Hz without requiring a separate subwoofer. These woofers are acoustically concealed behind the front panel and radiate through precision-shaped openings, preserving the monitor’s compact form while delivering tight, accurate bass with low distortion at high SPL.

Flexible Input Options with AES/EBU and Analog Support
The 8361AP includes both analog and AES/EBU digital XLR inputs. The monitor auto-detects the active signal using Intelligent Signal Sensing (ISS), but manual control is also possible when used in conjunction with the Genelec Loudspeaker Manager (GLM) network. An XLR output passes through a copy of the incoming AES/EBU signal, making it easy to daisy-chain additional monitors in multichannel configurations. DIP switches on the rear panel allow level and input configuration without software when needed.

Room Calibration and System Management via GLM Software
Designed to integrate fully with GLM, Genelec’s proprietary networked software platform, the 8361AP can be tuned to its environment with automated calibration, level matching, phase alignment, and system organization. Whether working in complex surround formats or simply optimizing your stereo listening environment, GLM helps ensure neutral, accurate monitoring in any acoustic space.

Minimum Diffraction Enclosure with Iso-Pod Stand for Isolation
The 8361AP’s Minimum Diffraction Enclosure (MDE) minimizes edge diffraction and cabinet coloration, ensuring clean acoustic performance throughout the frequency range. The included Iso-Pod isolation stand provides mechanical decoupling from surfaces while allowing for precise tilt adjustments. The enclosure supports both vertical and horizontal mounting, offering flexibility for different studio layouts.

Purpose-Built for Demanding Monitoring Environments
With a maximum SPL of 124 dB at 0.5 meters and a frequency response of 36 Hz to 20 kHz (±1.5 dB), the 8361AP is capable of meeting the needs of critical listening environments. From stereo tracking and mixing to Dolby Atmos and immersive post-production, this monitor delivers consistent accuracy, broad coverage, and long-term reliability—all in a self-contained, networked format.
