Fostex 6301NX Active Personal Monitor 4-Inch 20W Transformer Balanced XLR

Home Studio Monitors Fostex 6301NX Active Personal Monitor 4-Inch 20W Transformer Balanced XLR
was $709.99 Special Price $549.99

Active Personal Monitor, Single 4-Inch Full-Range Driver, 20W Class-D Amplifier, Transformer-Balanced XLR-3-31 Input, Unbalanced 1/4-Inch TS Input, 70 Hz to 15 kHz Response, 98 dB Maximum SPL, Magnetically Shielded Die-Cast Aluminum Enclosure, Ground-Loop Isolation, Multi-Voltage Power, Black

Availability: Special Order, Please Allow 2-4 Weeks For Delivery
SKU
6301NX

Fostex 6301NX Features:

  • TRANSFORMER-BALANCED XLR INPUT — an XLR-3-31 input with a physical audio transformer galvanically isolates the speaker from the source for long, quiet cable runs.
  • GROUND-LOOP IMMUNITY — transformer coupling breaks the electrical path and rejects hum and buzz in equipment racks, machine rooms, and OB trucks.
  • DUAL INPUTS ON BOARD — a 1/4-inch unbalanced jack sits alongside the balanced XLR for a quick local source when a full balanced run is not needed.
  • SINGLE 4-INCH ACTIVE DRIVER — a 4-inch full-range cone and a 20W Class-D amplifier make each 6301NX a complete, self-powered monitoring point.
  • HONEST BROADCAST VOICING — a 70 Hz to 15 kHz range, 98 dB maximum SPL, and 0.05 percent distortion keep a confidence feed clear and true.
  • RUGGED SHIELDED CHASSIS — a magnetically shielded die-cast aluminum cabinet with a recessed knob and grille survives shared, high-traffic facilities.

Fostex 6301NX: Transformer-Balanced Monitoring for Long Analog Runs

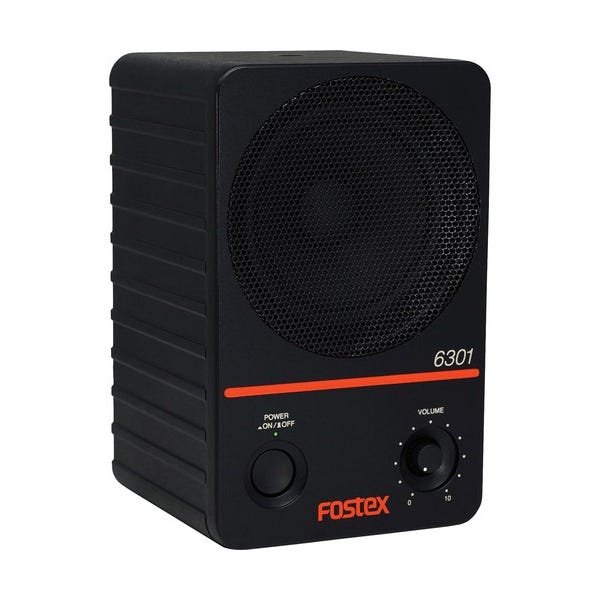

The Fostex 6301NX is a compact active personal monitor whose defining feature is a transformer-balanced XLR-3-31 input, the version of the 6301 you choose when the signal has to travel. A physical audio transformer on the input galvanically isolates the speaker from the source, rejecting the hum and ground-loop buzz that plague long cable runs and busy equipment racks. Behind that input sit the same 4-inch full-range driver and 20W Class-D amplifier that define the range, plus a 1/4-inch unbalanced jack for the occasional short local source. It is the balanced-analog workhorse of the 6301N line.

Why the Transformer Matters in a Machine Room

Electronically balanced inputs are common, but a transformer breaks the electrical path entirely, which is what you want when a monitor shares a rack with power amps, switchers, and dimmers. That isolation keeps a confidence feed clean over the tens of meters typical of a broadcast plant or an outside-broadcast truck. This model still reaches from 70 Hz to 15 kHz at up to 98 dB SPL with 0.05 percent distortion, so nothing about the honesty of the monitor is traded away for the ruggedized input. An operator hears the feed, not the wiring around it.

The Same Bombproof 6301 Chassis

Its die-cast aluminum enclosure is sealed and magnetically shielded, with a recessed level knob and grille that survive the daily abuse of shared facilities. A multi-voltage switching supply spans 100 to 240 VAC on a detachable IEC cord, and ErP-compliant auto standby idles the amplifier during silence. Bolt on the optional EB-6301 bracket and the cube angles onto a wall, a shelf, or the lip of a console exactly where an operator needs to hear it.

Where the 6301NX Fits

Specify the 6301NX when your plant is wired for balanced analog and cable distances or electrical noise rule out a simple unbalanced feed. It sits between the plug-and-go 6301NB and the digital 6301ND in the family, sharing the same driver and amplifier but adding an input built to stay quiet across a hostile, cable-heavy environment. Broadcast engineers and installers wiring permanent racks reach for this one.

More Information
MPN AMS-6301NX
Color Black
Input XLR
Power Source AC Mains
Form Personal Monitor
Output Power 20W
UPC / EAN 636827304597
Brand Fostex
Product Condition New
Availability Out of Stock

Fostex 6301NX Specifications

Monitor TypeActive (Powered) Personal Monitor, Single
Driver1x 4" (10.16 cm) Full-Range Cone
Amplifier20W RMS Class-D (D-Class / PWM)
Frequency Response70 Hz - 15 kHz
Maximum SPL98 dB
Output Level85 dB / W (1 m)
Total Harmonic Distortion0.05% (1 kHz, 1W)
Input Connector1x XLR-3-31 Transformer-Balanced + 1x 1/4" TS Unbalanced
Input Impedance10 kOhms or more
Residual Noise-70 dBV or less
EnclosureSealed Die-Cast Aluminum, Magnetically Shielded
Power Supply100 - 240 VAC, 50/60 Hz (Multi-Voltage Switching)
StandbyAuto Standby, ErP-Compliant
Power ConnectorDetachable IEC
