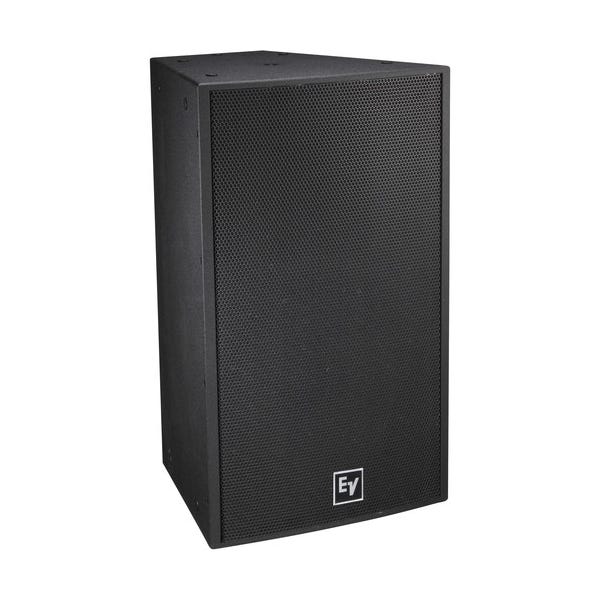

Electro-Voice EVF-1152D/94-PIB 15" 2-Way Full-Range Loudspeaker

Weatherized Loudspeaker Built for Outdoor Performance
The Electro-Voice EVF-1152D/94-PIB is a 15-inch, 2-way full-range loudspeaker system engineered for professional audio reinforcement in outdoor environments. Featuring a constant directivity 90 x 40° waveguide and cutting-edge driver technology, this system delivers clear and consistent sound coverage, even in challenging conditions. It is an excellent choice for stadiums, outdoor venues, and distributed audio systems requiring durable and reliable performance.

Advanced Drivers for Superior Sound Quality
This loudspeaker features a DH7N 3-inch titanium compression driver and a DVX3151A 15-inch low-frequency transducer, both optimized for efficiency and clarity. These components minimize distortion while delivering high output, ensuring intelligibility and precision even at maximum sound pressure levels. The integrated fourth-order crossover network ensures seamless frequency transitions, resulting in a balanced and dynamic audio experience.

Durable Enclosure for Harsh Environments
Housed in a 13-ply birch enclosure with PI-weatherization and an EVCoat finish, the EVF-1152D/94-PIB is designed to withstand exposure to dust, water, and other environmental factors. Its IP55 rating ensures resistance to the elements, making it suitable for use in covered outdoor installations. The black enclosure provides a sleek and professional appearance, while the stainless-steel grille adds extra durability and protection.

Flexible Rigging for Custom Installations
The trapezoidal design and 22 M10 threaded suspension points allow for versatile mounting configurations, supporting both horizontal and vertical setups. This system integrates seamlessly with other Electro-Voice EVF and EVH series models, enabling customized clusters for tailored sound coverage. For distributed audio applications, the system can be equipped with a 70.7/100V transformer kit.

Weatherproof Connections and Adjustable Modes
The input panel features a Phoenix-style connector and a CDG dual-gland-nut cover, providing secure and weatherproof connections for outdoor setups. An externally accessible jumper allows for easy switching between active and passive operation modes, enhancing compatibility with a variety of audio configurations and simplifying installation.

Consistent Coverage for Large Venues
With its constant directivity 90 x 40° waveguide, this loudspeaker delivers uniform sound dispersion, ensuring every corner of the venue receives clear and balanced audio. A sensitivity of 100 dB and a maximum SPL of 134 dB make this system capable of handling high-output applications while maintaining exceptional sound quality.
