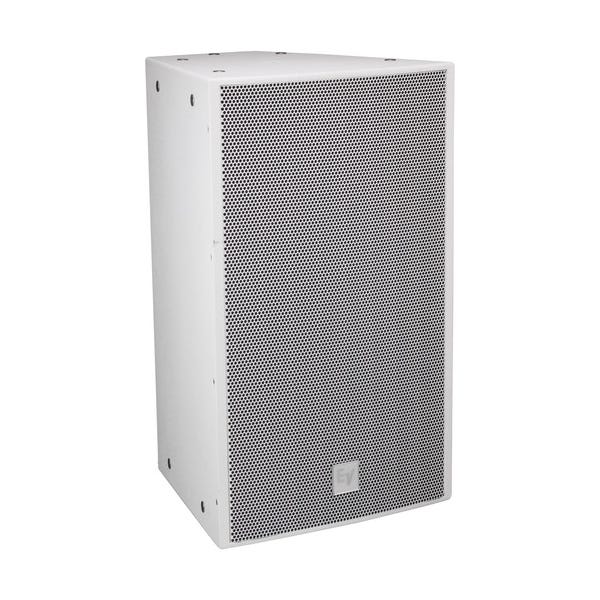

Electro-Voice EVF-1152D/64-PIW 15" 2-Way Full-Range Loudspeaker

Weatherized Loudspeaker Built for Superior Outdoor Audio
The Electro-Voice EVF-1152D/64-PIW is a 15-inch, 2-way full-range loudspeaker system engineered for high-quality sound reinforcement in outdoor and protected environments. Designed for professional use, it delivers exceptional audio performance with a constant directivity 60 x 40° waveguide, ensuring consistent sound coverage. This weatherized system is perfect for arenas, outdoor venues, and distributed sound applications.

Advanced Drivers for Precise and Efficient Sound
This loudspeaker incorporates a DH7N 3-inch titanium compression driver and a DVX3151A 15-inch low-frequency transducer, both optimized for high efficiency and low distortion. These advanced components produce clear and powerful sound, ensuring intelligibility across a wide range of audio frequencies. The fourth-order crossover network guarantees smooth transitions and long-term reliability, even in demanding conditions.

Durable Construction for Outdoor Protection
Housed in a 13-ply birch enclosure with EVCoat and PI-weatherization, the EVF-1152D/64-PIW is built to withstand harsh conditions. The IP55-rated enclosure resists dust and water, making it ideal for outdoor use in protected areas such as under roof overhangs. Its robust design is complemented by a stainless-steel grille, ensuring durability without sacrificing audio quality.

Flexible Installation Options for Any Venue
With a trapezoidal design and 22 M10 threaded suspension points, this loudspeaker offers flexible mounting options for horizontal or vertical installations. Compatible with other EVF and EVH series loudspeakers, the system allows for seamless integration into clusters or distributed setups, ensuring tailored sound coverage for any application. A 70.7/100V transformer kit can be easily added to support distributed systems.

Weatherproof Connectivity and Operation Modes
The input panel features a Phoenix-style connector and a dual-gland-nut cover for secure, weatherproof connections. An externally accessible jumper enables quick switching between active and passive operation modes, making the system adaptable to diverse audio setups. These user-friendly features simplify installation and enhance reliability.

Consistent Coverage for Large Spaces
The 60 x 40° constant directivity waveguide ensures even sound dispersion across wide areas, delivering clear audio throughout large venues. With a high sensitivity of 100 dB and a maximum SPL of 134 dB, the EVF-1152D/64-PIW provides the power and clarity needed for demanding sound reinforcement tasks.
