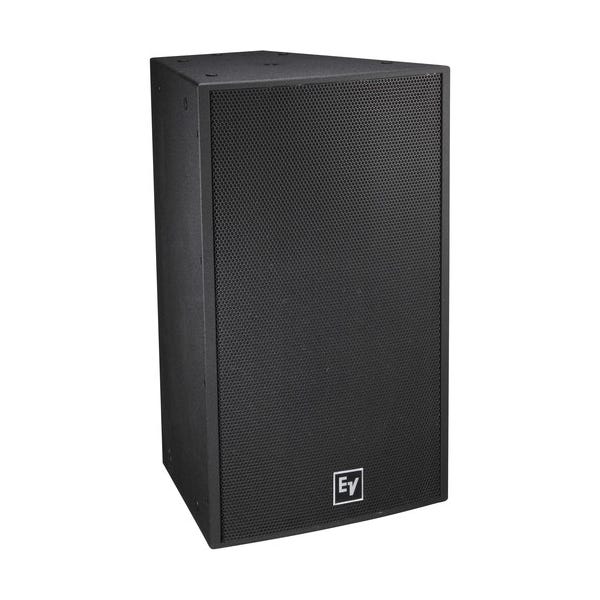

Electro-Voice EVF-1152D/64-PIB 15" 2-Way Full-Range Loudspeaker

Weatherized Loudspeaker for Outdoor and Protected Installations
The Electro-Voice EVF-1152D/64-PIB is a professional-grade 15-inch, 2-way full-range loudspeaker system, specifically engineered for high-quality sound in challenging outdoor or protected environments. Featuring a constant directivity 60 x 40° waveguide and advanced driver technology, this speaker ensures exceptional clarity and even sound dispersion, making it ideal for arenas, outdoor venues, and distributed audio systems.

Advanced Drivers Deliver Powerful and Accurate Audio
This loudspeaker combines a DH7N 3-inch titanium compression driver with a DVX3151A 15-inch low-frequency transducer, both optimized to minimize distortion and maximize efficiency. The precision-engineered drivers produce clear and powerful sound, ensuring every detail is heard. A steep 24 dB per octave crossover network enhances frequency response, while a built-in protection circuit ensures reliable performance over time.

Durable Construction for Harsh Conditions
Encased in a 13-ply birch enclosure with EVCoat and PI-weatherized treatment, this loudspeaker is built to withstand tough conditions. Rated IP55, it resists dust and moisture, making it suitable for outdoor applications in protected areas like under roof overhangs. The rugged enclosure and stainless-steel grille ensure long-term durability without compromising on sound quality.

Flexible Installation Options for Custom Configurations
The EVF-1152D/64-PIB’s trapezoidal design and 22 M10 threaded suspension points enable versatile mounting in both vertical and horizontal orientations. This loudspeaker integrates seamlessly with other Electro-Voice EVF and EVH series models, allowing for tailored cluster designs that meet the needs of any venue. A 70.7/100V transformer kit can be easily installed for use in distributed systems.

Weatherproof Connectivity and Configurable Modes
This loudspeaker features a Phoenix-style connector and a dual-gland-nut input panel cover for secure, weatherproof connections. An externally accessible jumper allows users to switch between passive and active operation modes, making it adaptable to a variety of system configurations. These features simplify installation while maintaining reliable operation.

Consistent Coverage for Large-Scale Applications
The 60 x 40° constant directivity waveguide ensures consistent sound dispersion across wide spaces, delivering clear and balanced audio to every corner of the venue. With a sensitivity of 100 dB and a maximum SPL of 134 dB, this loudspeaker can handle high-output scenarios with ease, ensuring every note and word is heard with clarity.
